Power Frequency Withstand Voltage Test Set

Power Frequency Withstand Voltage Test Set

Product description:
INQUIRY

1.Purpose:

Suitable for insulation materials power frequency or DC dielectric strength test of the power systems, industrial and mining enterprises, transport, post and telecommunications departments, research units, a variety of high-voltage electrical equipment, electrical components.

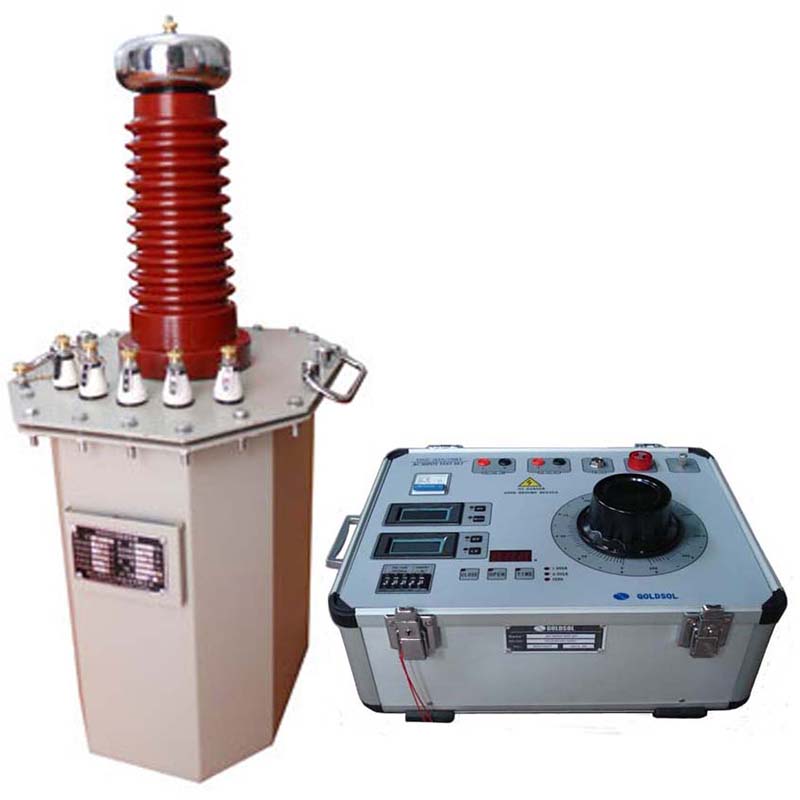

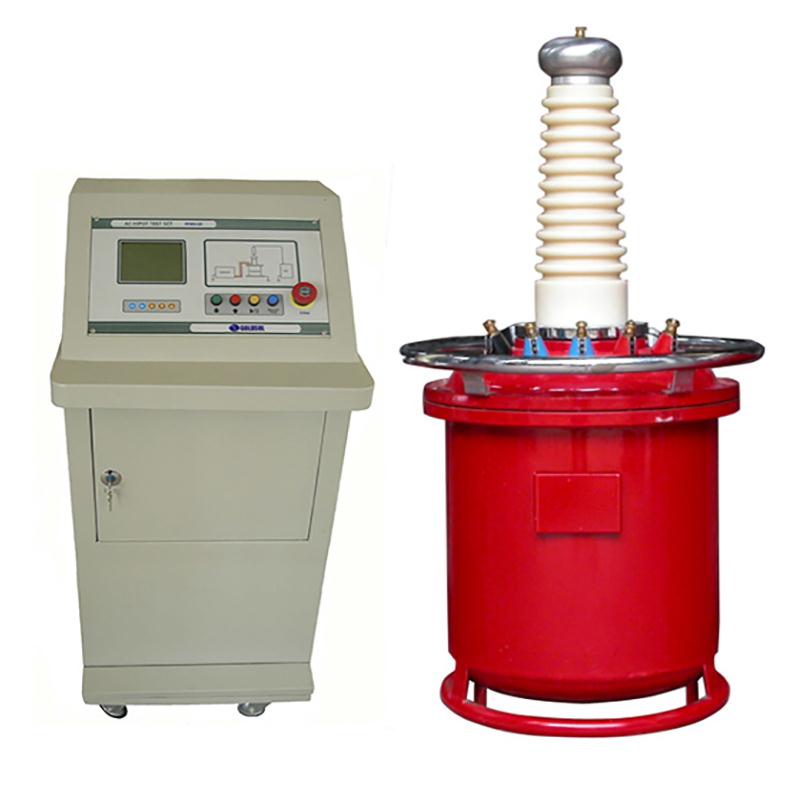

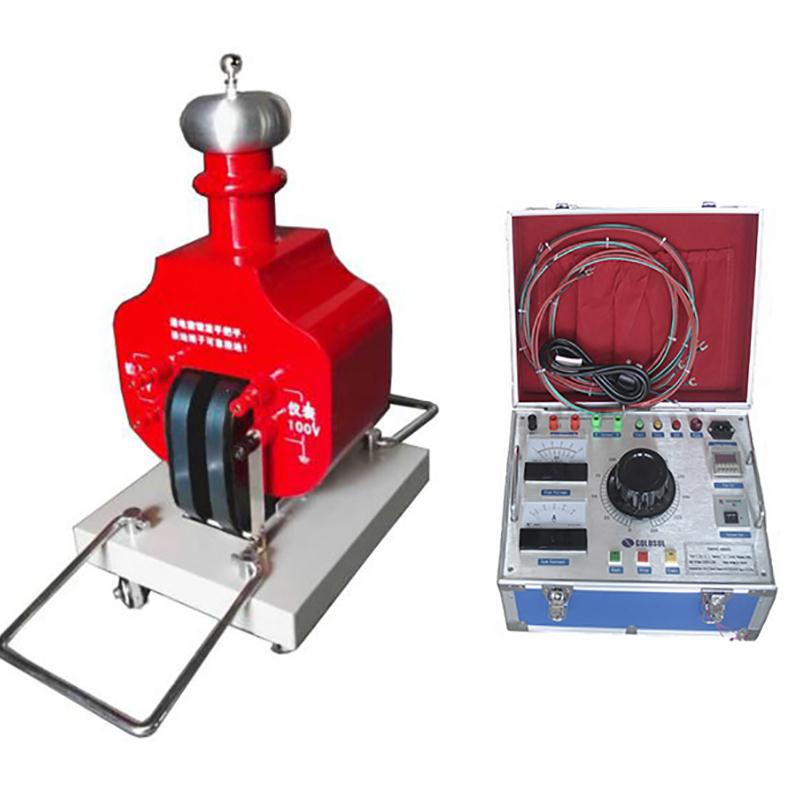

The product is mainly made up of Control unit and transformer.It has superior performance、functionality and access to reliable、pleasing in appearance、easy operation and maintenance.

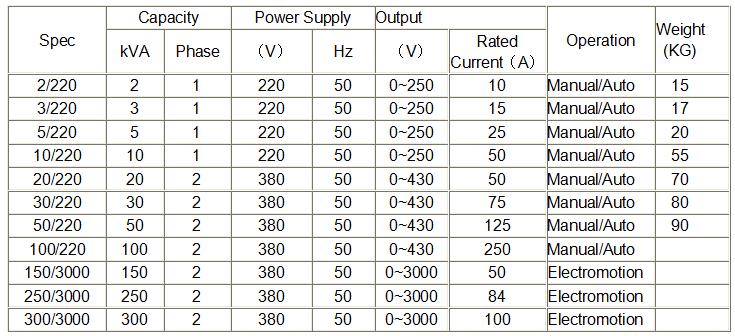

2.Parameters of Control unit

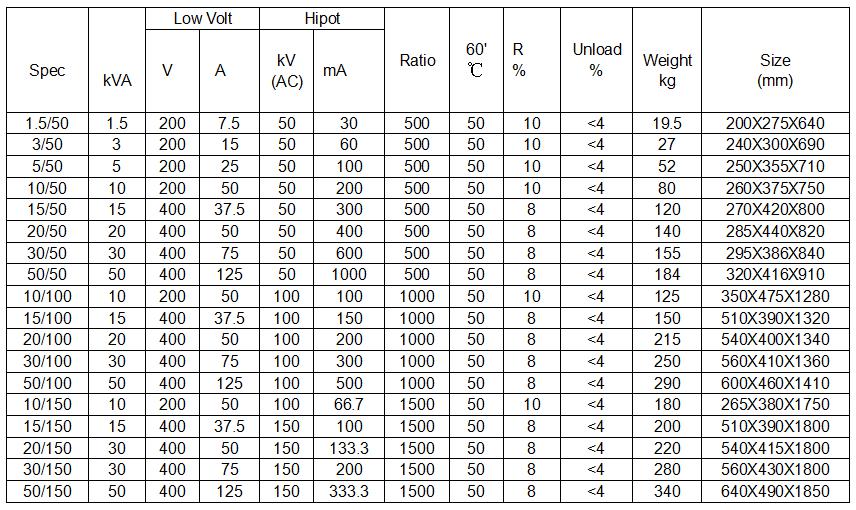

3.Parameters of Oil Transformer:

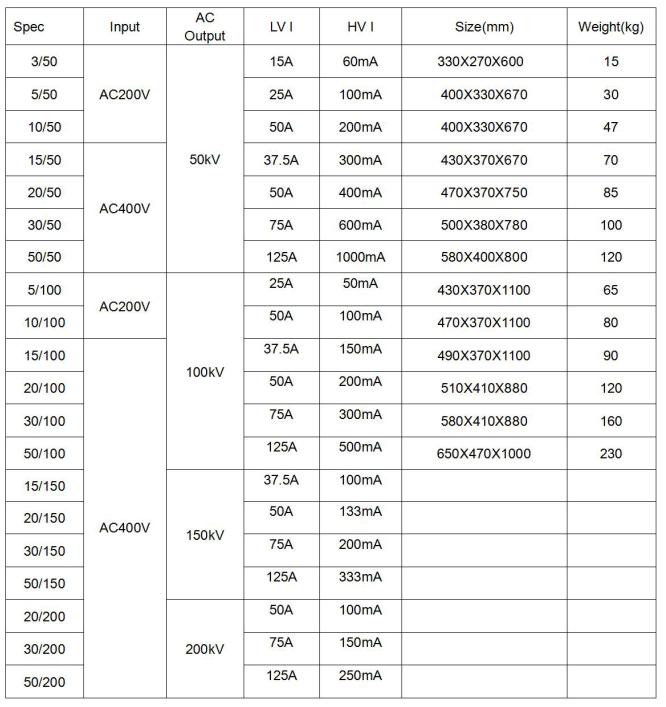

4.Parameters of SF6 Transformer:

Spec	Input	AC Output	LV I	HV I	Size(mm)	Weight(kg)
3/50	AC200V	50kV	15A	60mA	Φ300Х690	35
5/50			25A	100mA	Φ300Х690	35
10/50			50A	200mA	Φ375Х750	60
15/50	AC400V		37.5A	300mA	Φ420Х800	70
20/50			50A	400mA	Φ440Х820	85
30/50			75A	600mA	Φ386Х840	100
50/50			125A	1000mA	Φ416Х910	120
5/100	AC200V	100kV	25A	50mA	Φ300Х1300	65
10/100	AC200V		50A	100mA	Φ475Х1300	65
15/100	AC400V		37.5A	150mA	Φ390Х1320	85
20/100			50A	200mA	Φ400Х1340	100
30/100			75A	300mA	Φ410Х1360	110
50/100			125A	500mA	Φ460Х1410	125
15/150		150kV	37.5A	100mA	Φ390Х1800	100
20/150			50A	133mA	Φ415Х1800	110
30/150			75A	200mA	Φ430Х1800	125
50/150			125A	333mA	Φ490Х1850	140
20/200		200kV	50A	100mA	Φ510Х2150	140
30/200			75A	150mA	Φ530Х2150	160
50/200			125A	250mA	Φ550Х2150	240
