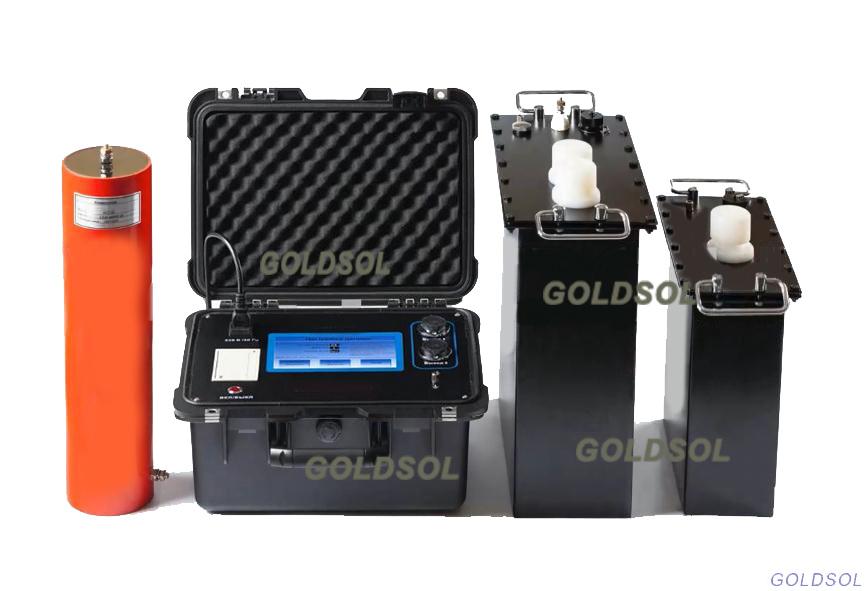

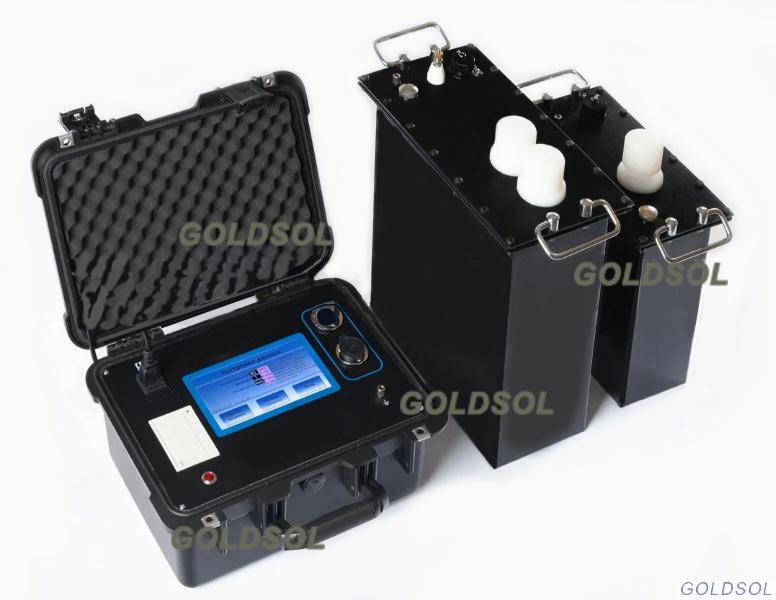

  • Product description: VLF-100 gives 100KV peak output.
  • INQUIRY

Purposes:

AC Testing of cables and electrical apparatus is now easier than ever if using our VLF High Voltage Tester !

VLF testers are suitable for testing cables, transformers, switchgear,rotating machinery, and other electrical apparatus.


VLF Advantage:

-Easiest to see fully automatic micro-controller

-Built-in printer

-True sine wave output

-Real-time display of actual output waveform

-Ergonomic, menu guided, large backlit LCD

-Storage of test results for later retrieval and print.

-Over voltage and current protected

-Variable frequency 0.1Hz, 0.05Hz, 0.02 Hz, 0.01Hz

-Data of current, voltage and waveform directly sampled at HV side.

-AC testing does not degrade good cable insulation

-Harmful space charges are not injected into the cable insulation

-No traveling waves are generated during testing

-Rugged and reliable design less prone to failure from transients


Technical parameters

1.Power: 220V ± 10% AC, 50/60 Hz, single phase;  or 110V ± 10% AC, 50/60 Hz

2. AC Output-Voltage (Peak):30KV, 40KV, 50KV, 60KV, 70KV, 80KV, 90KV, 100KV (DC can be designed).

3.Output frequency:  0.1Hz,0.05Hz,0.02Hz, 0.01 Hz (4 scales)

4. Stability of frequency: Fluctuation < 0.5%

5. Measurement accuracy: ±3%.

6. Positive and negative voltage peak error: ≤3%.

7. Voltage waveform distortion: ≤5%

8. Construction: In two units: Control unit and Booster.

9. Ambient conditions of use: temperature Indoor and outdoor : -10ºC + 50ºC.

10. Humidity:≤85%

Model no

Output

Voltage/

Current

(Peak)

Load Capacity

Control Unit

Booster

Power

Capacitance/

Freuency

Net Dim.

(cm)

Net Wt

(kg)

Net Dim.

(cm)

Net Wt

(kg)

VLF-30

30KV/29mA

0.1 Hz, ≤1.1µF

0.05Hz, ≤2.2µF

0.02Hz, ≤5.5µF

0.01Hz, ≤11µF

40×24×31

6

34×16×30

25

1000W

VLF-40

40KV/29mA

0.1 Hz, ≤1.1µF

0.05Hz, ≤2.2µF

0.02Hz, ≤5.5µF

0.01Hz, ≤11µF

40×24×31

6

44×18×37

40

1200W

VLF-50

50KV/59mA

0.1 Hz, ≤1.1µF

0.05Hz, ≤2.2µF

0.02Hz, ≤5.5µF

0.01Hz, ≤11µF

40×24×31

6

44×19×37

45

1500W

VLF-60

60KV/59mA

0.1Hz ≤ 0.5uF

0.05Hz ≤ 1.0uF

0.02Hz ≤ 2.5uF

0.01Hz, ≤5.0µF

40×24×31

6


45×20×38


    45

2000W

VLF-70

70KV/59mA

0.1Hz ≤ 0.5uF

0.05Hz ≤ 1.0uF

0.02Hz ≤ 2.5uF

0.01Hz, ≤5.0µF

40×24×31

6

45×20×38

34×16×30

 45+25

2500W

VLF-80

80KV/59mA

0.1Hz ≤ 0.5uF

0.05Hz ≤ 1.0uF

0.02Hz ≤ 2.5uF

0.01Hz, ≤5.0µF

40×24×31

6

45×20×38

34×16×30

 45+25

3000W

VLF-90

90KV/59mA

0.1Hz ≤ 0.5uF

0.05Hz ≤ 1.0uF

0.02Hz ≤ 2.5uF

0.01Hz, ≤5.0µF

40×24×31

6

45×20×38

45×20×38

 45+30

3500W

VLF-100

100KV/59mA

0.1Hz ≤ 0.5uF

0.05Hz ≤ 1.0uF

0.02Hz ≤ 2.5uF

0.01Hz, ≤5.0µF

40×24×31

6

45×20×38

45×20×38

 45+30

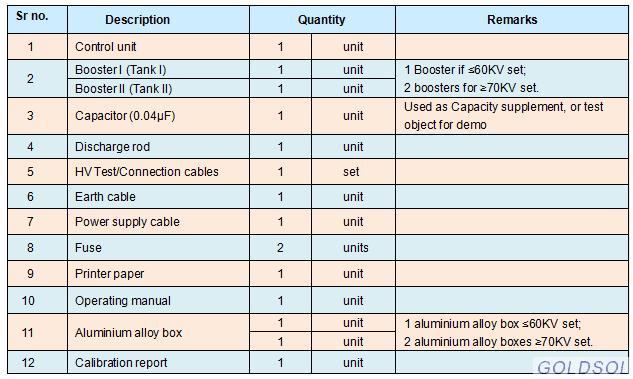

4000W
