Home > SF6 Recovery and Pumping Equipmen
Profile

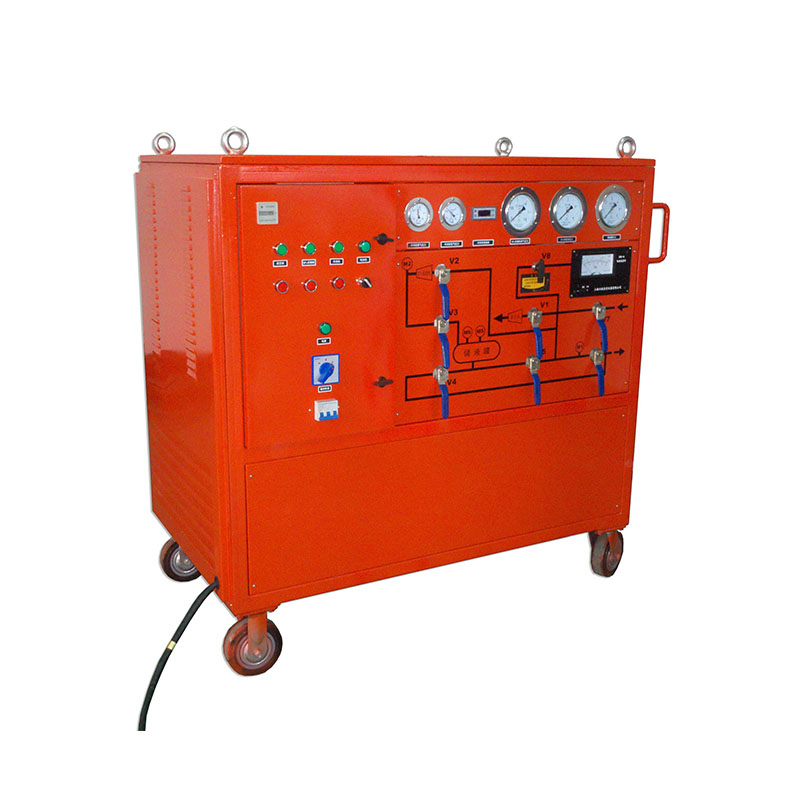

The system includes vacuum pumping system, purification system, compression system, refrigeration system. it can be used by Power supply company, Substation, power plants, Ultra high voltage power transmission station, SF6 Circuit Breaker manufacturer, it is the auxiliary equipment of GCBP、GCBT、GIS and SF6 Electrical Products installation, debugging and maintenance.
Advantage
1.Regenerative filter cleaner which is more clean, blocking rate is 100% for dust size
≥1.0um (general recycling equipment only reach 2.0um).
2.High reliable check valve design (effective prevention of unexpected return).
3.High sealing fast metal joints, fitted with self-opening, remove with self-closing,
It effectively prevents gas leakage and air entry.
4.It is convenient and quick to use.
5.The device has a good performance of the components.
6.Each independent system can automatically confirm three-phase power supply, without changing phase adjustment, to avoid vacuum pump reverse operation.
Technical data
|
Model |
GD7Y-4-20 |
Compressor discharge |
7M3/h |
||
|
Pumping speed of vacuum pump |
4 M3/h |
Storage container |
20 L (20kg) |
||
|
Vacuum |
Vacuum pump limit vacuum:6*10-2Pa， Whole instrument limit vacuum:10Pa |
||||
|
SF6 Recovery purity |
Moisture≤60ppm(Weight ratio: gas moisture content of 50kg water content 1000ppm/V gas,one time recovery and drying), Oil Content≤10 ppm, gas heating and drying device can be activation and regeneration, vaporization mode: electric heating. |
||||
|
Recovery mothod |
Frozen liquefaction |
||||
|
Noise dB(A) |
≤75 |
Power supply |
380-460V, 50/60Hz |
||
|
Weight |
250kg |
Size |
1200×800×1100 |
||
|
Model |
GD7Y-15-50 |
Compressor discharge |
7M3/h |
||
|
Pumping speed of vacuum pump |
15 M3/h |
Storage container |
50 L (50kg) |
||
|
Vacuum |
Vacuum pump limit vacuum:6*10-2Pa， Whole instrument limit vacuum:10Pa |
||||
|
SF6 Recovery purity |
Moisture≤60ppm(Weight ratio: gas moisture content of 50kg water content 1000ppm/V gas,one time recovery and drying), Oil Content≤10 ppm, gas heating and drying device can be activation and regeneration, vaporization mode: electric heating. |
||||
|
Recovery mothod |
Frozen liquefaction |
||||
|
Noise dB(A) |
≤75 |
Power supply |
380-460V, 50/60Hz |
||
|
Weight |
250kg |
Size |
1200×800×1100 |
||
