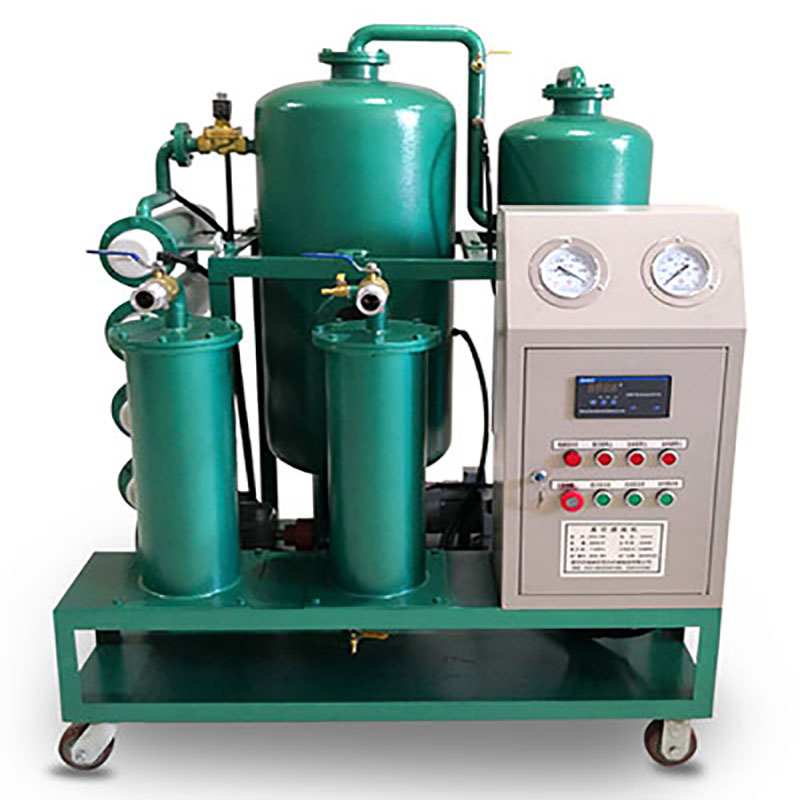

DYG Series Insulating Oil Filter/Purification machine

DYG Series Insulating Oil Filter/Purification machine

1. Application

1) Insulating oil vacuum oil filter is mainly used to treat and purify unqualified Insulating oil

    such as transformer oil, transformer oil, switch oil. It can also be used for vacuum oil injection, vacuum

   drying  and hot oil circulation of transformer.

2) It is used to remove trace moisture, gas, mechanical impurities and harmful gases in

   insulating oil, improve flash point, reduce dielectric loss and acid value, and further improve insulation

   strength and withstand voltage index of oil.

3) It is used in power plant, power station, electric power company, substation industry,

metallurgy, petrochemical, machinery, transportation, railway and other industries for

maintenance and safe use of power system and substation.

2. Advantage

    1) With three filters ganami molecular adsorption technology, encryption level filtering, good filtering

         accuracy.

2) Advanced dehydration and degassing of three-dimensional flash technology, rapid and

efficient removal of oil moisture, impurities, hydrocarbons and other harmful ingredients.

3) Safe and reliable air material with far infrared heating system, optimization design of

pipeline to ensure uniform heating oil, to ensure that no "dead oil", to avoid oil

carbonization.

4) Digital intelligent temperature control equipped, to overcome the defect of a heating

point of traditional pointer type, users can freely set temperature during 20℃ to 80 ℃,

the lower limit, and users can directly  see oil instant temperature.

5) Beside general functions of vacuum oil filter dehydration, degassing and Purification, it

also has poor oil regeneration function, it can effectively remove oil deep oxides, free

carbon limit material, it can recover inferior oil oxidation resistance, acid and alkaline

water solution of comprehensive index.

6) Only one machine but three functions: it not only can independently be used vacuum

   dewatering, degassing, Purification system, but also and independent regeneration system, and it can be

   used in same time.


3.Technical parameter

1

Model no.

DYG-30

DYG-50

DYG-70

DYG-100

DYG-150

DYG-200

DYG-300

2

Flow

1800L/h

3000L/h

4200L/h

6000L/h

9000

12000

18000

3

Breakdown Voltage (KV)

60KV (GB/T507)

4

Working Vacuum (Mpa)

-0.060.098

5

Pressure (Mpa)

0.4

6

Noise (dbA)

75

7

Water content in oil (mg/L)

5 (GB/T260)

8

Gas content in oil (%)

0.1 (GB/T423)

9

Inlet and outlet pipe diameter (mm)

25

32

40

40

50

50

65

10

Heating range of Oil Temperature ()

20℃—80

11

Filter Precision (μm)

3 (GB/T511)

12

Total power (KW)

23

25

60

65

86

108

160

13

Power supply

380V±10%, 50Hz or 60Hz (Can be customized)

14

Net weight (kg)

280

320

780

800

900

1000

1200

15

Demension(cm)

(L*W*H)

100*80*140

100*80*150

140*100*160

150*110*170

170*120*180

180*130*190

200*150*210

4.Accessoires


Sr

Decription

Qty

1

Inlet/outlet oil soft tube

                           2 pcs

2

Quick coupling

                           2 pcs

3

Hose clamp

2 pcs

4

Opearting manual

1 pc

5

Calibration report

1 pc


5.Optional items for buyers:

1) Water circulation vacuum pump;

2) Flow meter with accumulation function;

3) On line moisture detector and on-line particle detector;

4) PLC intelligent control, touch screen and dynamic display;

5) High quality imported power components, filter parts and electrical components to improve equipment performance;

6) BT or CT explosion-proof


6.Customized equipment as per buyers requirements:

1) The whole machine mechanism can be made into mobile and fixed type;

2) Fully closed and open type can be made;

3) Select the equipment color according to the needs;

4) The whole machine can be made into oil filter with plate and frame, which has better filtering effect for oil with more impurities
