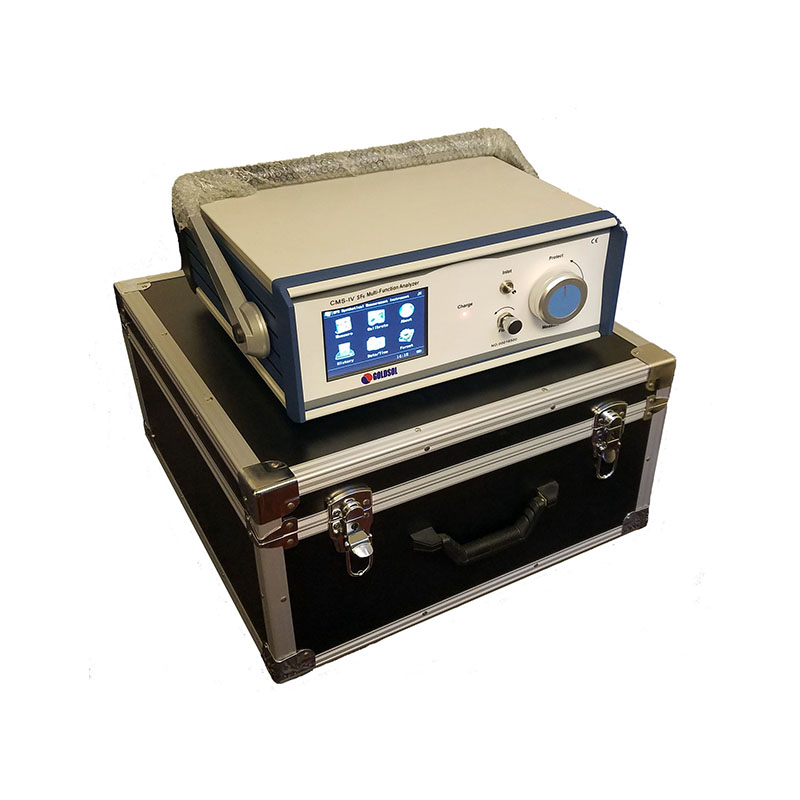

Home > SF6 Analyzer
Advantages:
1. Graphical menu, color display
2. Electronic flow display and electric quantity display
3. Measurement data can be stored, printed
4. Support for data communications.
5. Support file system.
6. Self diagnosis function
7. Easy operation, convenient maintenance
8. Data management system software
9. AC / DC purpose, built-in lithium battery
10. Small volume, light weight for portable
11.USB interface
12.Built-in micro-printer (for buyer’s option)
Technical Parameters
1.Display：Colour large touch LCD
2.Power Input：AC 100 -240VAC,50/60Hz，overcharge protection,built-in 3500mAH lithium
battery
3.Working pressure:0～1.0MPa
4.Gas flow velocity:No effection,Electronic mass flowmeter
5.Output Interface: USB
6.Operation Environment: -20～+60℃
7.Humidity: 0～100％RH
8.Size: 250*150*300mm3
9.Weight:Approx 5kgs
|
SF6 Purity |
Test range |
0%~100% |
|
Accuracy |
±0.5% |
|
|
Test time |
<2 min. |
|
|
H2O Dew point |
Test range |
－80 ℃～+20 ℃ |
|
Accuracy |
±0.5℃（－80℃～－60℃） |
|
|
Response time （＋20℃） |
63%:5sec; 90%:45sec（-60℃～＋20℃） 63%:10sec; 90%:24sec（-60℃～-80℃） |
|
|
H2S |
Test range |
0~200ppm |
|
Testing min Value |
≤0.1ppm |
|
|
Accuracy |
±0.5% |
|
|
Stability |
0~200ppm |
|
|
Repeatability |
≤2% |
|
|
SO2 |
Test range |
0~200ppm |
|
Testing min value |
≤0.1ppm |
|
|
Accuracy |
±0.5% |
|
|
Stability |
0~200ppm |
|
|
Repeatability |
≤2% |
|
|
HF
|
Test range |
0~20ppm |
|
Min check amount |
≤0.01ppm |
|
|
Accuracy |
±0.5% |
|
|
Stability |
0~20ppm |
|
|
Repeatability |
≤2% |
|
|
CO
|
Test range |
0~1000ppm |
|
Testing min value |
≤1ppm |
|
|
Accuracy |
±0.5% |
|
|
Stability |
0~1000ppm |
|
|
Repeatability |
≤2% |
|
|
CF4
|
Test range |
0-80% |
|
Accuracy |
±0.5% |
|
|
Air/N2 |
Test range |
0-100% |
|
Accuracy |
±1.0% |
Accessaires
|
Sr no. |
Description |
Quantity |
|
|
1 |
SF6 Analyzer (Host) |
1 |
unit |
|
2 |
Portable aluminum alloy suitcase |
1 |
unit |
|
3 |
Test tube with valve for gas Input |
1 |
unit |
|
4 |
Soft tube for gas output |
1 |
unit |
|
5 |
Power supply cable |
1 |
unit |
|
7 |
Metal joint set (Giveaway) |
1 |
Set |
|
8 |
Calibration report |
1 |
unit |
|
9 |
Operating manual |
1 |
unit |
