Summary

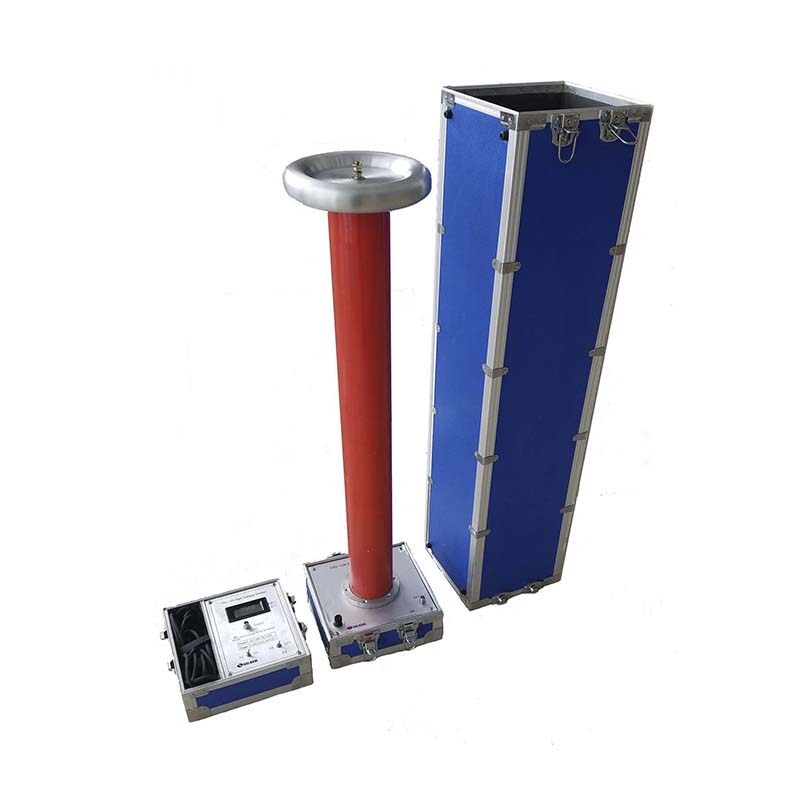

FRC Seres high Voltage Divider (Kilovoltmeter) is a universal high Voltage measuring instruments which can be used to test Power frequency AC high voltage and DC high voltage for electric power systems, electrical appliance, electronic equipment manufacturing sector. It includes high voltage testing part & low-voltage measuring instruments. The low-voltage & high voltage part can work separately, so it is of safety and reliability. It is the upgrading products of static high voltage meter, packed with aluminum alloy case for portable.

Advantage

1. High precision: high precision high voltage film capacitor and high precision high voltage glass glaze resistance are used, high input impedance, low test current, low power consumption, and improved the measurement accuracy and stability of the instrument. Signal processing part: high-performance OP is used for signal amplification, double integral AD sampling technology, 4¹/₂ liquid crystal display, the highest resolution: 0.001kv, it is an updated product of high-voltage electrostatic voltmeter.

2. Good anti-interference performance: special shielding technology is adopted. The surface of aluminum alloy ball is smooth and bright, which effectively improves the electric field distribution around the ball, prevents the top discharge, and improves the anti-interference ability of measurement data. The low-voltage display instrument is shielded by all metal enclosed structure, and the high-voltage divider and low-voltage display meter are connected by high-quality coaxial cable to reduce the impact of high voltage on the display value, so as to achieve high stability and high linearity.

3. Safety and reliability: FRC series AC / DC digital high-voltage meter includes high-voltage divider and low-voltage display instrument. The high-voltage divider is made of DuPont filling material, with special process potting, smaller structure, lighter weight, minimum internal partial discharge and higher reliability. There is no oil leak. When working, the high-voltage divider and low-voltage instrument are connected by coaxial cable, and the high-voltage and low-voltage parts are far away from each other, so the work is safe and reliable.

4. Simple operation: dial switch to change high and low voltage, AC and DC, convenient and fast. The measurement results are directly displayed on 4¹/₂ LCD, which is simple and intuitive. It brings great convenience at field testing work.

5. Easy to carry: portable structure,the whole machine is made of aluminum alloy packing box as the shell, which can be easily disassembled. Small size, light weight, easy to carry, very convenient to use.

Main Technical Parameters

1.Measuring range: FRC-200:  AC 0-200KV; DC 0-200KV;

2.Testing Accuracy: AC 1.0%, DC 0.5%

3. Divider rato: 1:1000

4.Condition: Temperature 0～50℃; Humidity:<90%

5.Temperature coefficient: <0.1%/°C

6.Voltage coefficient:<0.2%

7.Insulation medium: USA DuPont dry dielectric material

8.Signal cable length: 4m for FRC-200.
