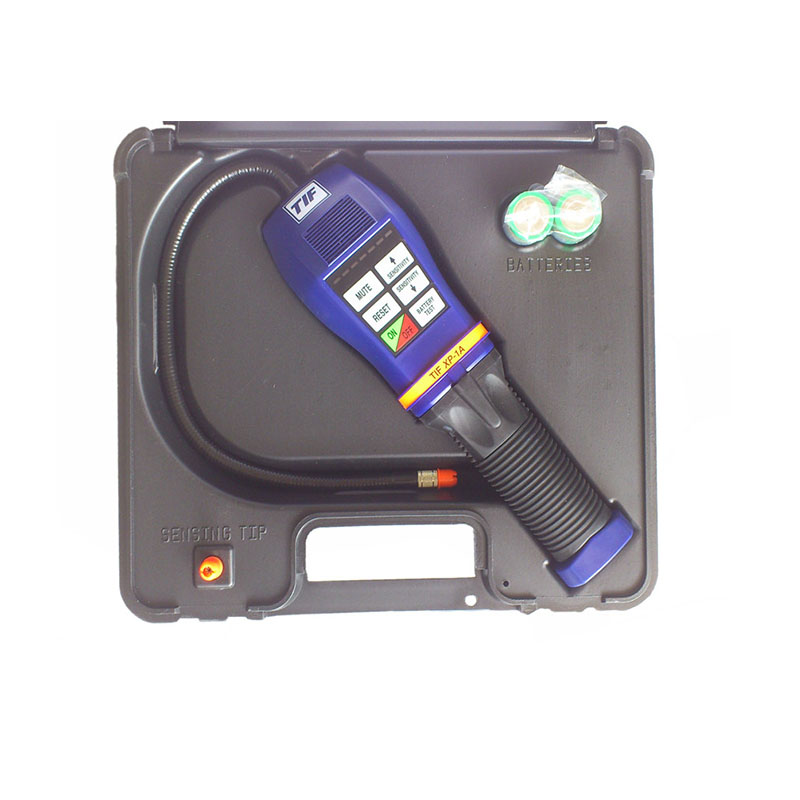

SF6 Gas Leak Detector TIF XP-1A

SF6 Gas Leak Detector TIF XP-1A

FEATURES



* Microprocessor control, with advanced digital signal processing

* Tricolor visual display

* Seven (7) levels of sensitivity provide an increase of up to 64x

* Tactile keypad controls

* Real time sensitivity adjustment

* Battery test function

* Battery voltage indication

* Certified to SAE J1627 for R134a,R12, R22

* Detects all halogenated refrigerants

* True mechanical pumping provides positive airflow through sensing tip

* Mute feature included

* Cordless and portable,operates on 2 "C"-cell batteries

* Carrying case included

* 14”(35.5cm) flexible, stainless probe

* Optional reference leak source

* One-year warranty





PARTS & CONTROLS





1.Sensing tip

2.Tip protector

3.Power on/off

4.Battery test

5.Reset Button

6.Audio mute

7.Sensitivity up

8.Sensitivity down

9.LED leak indicators

10.Flexible probe



Applications



The XP-1A Leak Detector may also be used to:



- Detect Leaks in other systems and stroage/recovery containers. It will respond to all halogenated

 (contains chlorine or fluorine) refrigerants. This includes, but it not limited to:

    CFCs       e.g. R12,R11,R500,R503 etc...

HCFCs      e.g.R22,R123,R124,R502 etc...

HFCs       e.g.R134a,R404a,R125 etc...

Blends such as AZ-50,HP62,MP39 etc...

- Detect ethylene oxide gas leaks in hospital sterilizing equipment (it will detect the halogenated

 carrier gas)

- Detect SF6 in high voltage circuit breakers

- Detect most gases that contain chlorine,fluorine and bromine (halogen gases)

- Detect cleaning agents used indry cleaning applications such as perchloroethylene

- Detect halon gases in fire extinguishing systems





Specifications



1.Power supply: 3V DC; 2 “C” cell alkaline batteries

2.Maximum sensitivity: per SAE J1627 rating criteria; certified for R12,R22 and

                    R134a @0.5oz/yr (14gr/yr)

3.Ultimate sensitivity: less than 0.1oz/yr (3gr/yr) for all halogen based refrigerants.

4.Sensing tip life: approx.20 hours

5.Operating temperature: 30° to 125°F (0° to 52°C)

6.Battery life: approximately 30 hours normal use

7.Duty cycle: continuous, no limitation

8.Response time: Instantaneous

9.Reset time: one second

10.Warm up time: approx.2 seconds

11.Unit weight: 1.2 lbs(560 grams)

12.Unit dimensions: 9” x 2.5” x2.5” (22.9cm x 6.5cm x6.5cm)

13.Fixed probe length: 14” (35.5cm)





Standard equipment

Your halogen leak detector comes equipped with one carrying case, one owner’s manual, 2 “C” cell batteries (Note: battery is not allowed to be shipped by airfreight and express delivery such as DHL,Fedex,UPS...because of security reason, so it is usually removed by security inspectors, but the “C” cell batteries are very easy to buy anywhere) and one replacement sensing tip and protector.
