SF6 Purity Tester CMS-03

SF6 Purity Tester CMS-03

Product introduction

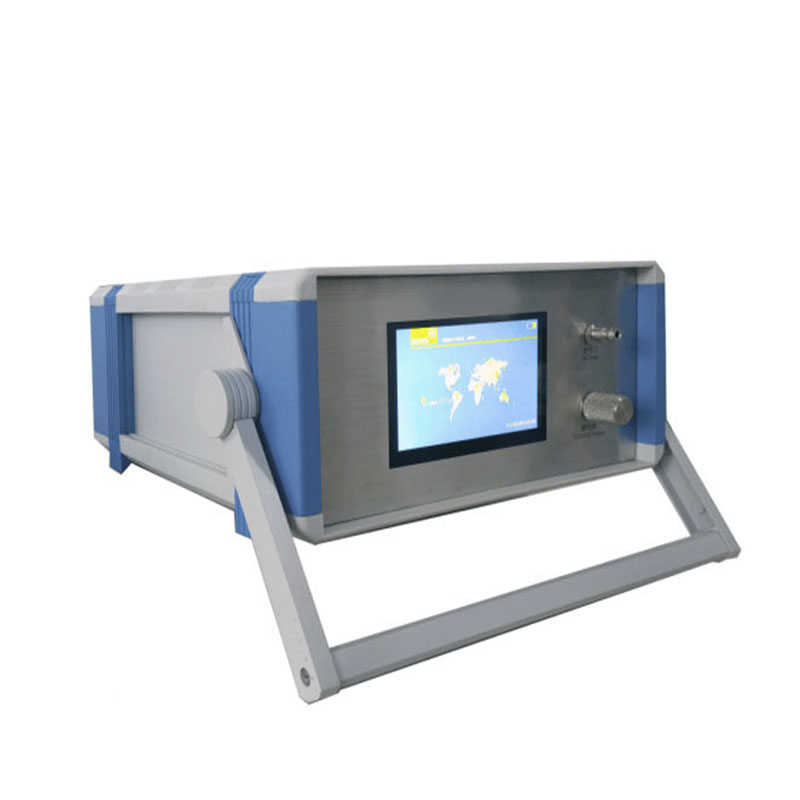

SF6 Intelligent gas purity analyzer (CMS-03) is mainly used to measure SF6 gas purity (percentage content) of SF6 and air, SF6 and N2 mixed gas, and check SF6 gas purity (percentage content) in SF6 equipment (cable, switch), and can also be used in applications with several background gases (special requirements are required). The instrument adopts the most advanced micro thermal conductivity cell detection module with temperature compensation in the world, which can quickly and accurately measure the purity of SF6. Under normal conditions, its service life can reach 10 years.



SF6 gas purity analyzer is the preferred portable instrument for testing SF6 gas leakage in power plants, substations and other places. It is suitable for the daily detection of SF6 gas purity in power plants and substations, the detection of gas replacement process during the start-up and shutdown of generators, and the precise detection of the special gas purity in metallurgy, chemical fiber and petrochemical industries.


Advantage

1.Portable: small size, light weight, simple operation, quick response & stable reading;

2.Easy to operate: large touch LCD, intuitive test results;

3.Fast test & gas saving: measurement time of each SF6 gas chamber is less than 1

minute after starting up and entering the measurement state;

4.Self-locking joint: adopt original imported self-locking joint from Germany, safe and reliable, no air leakage;

5.Data storage: large capacity design, up to 1000 groups of test data can be stored;

6.Clear display: the 5-inch large touch LCD directly displays the current gas purity, ambient temperature and humidity, time, etc;

7.Built-in USB interface: connected with PC for data analysis;

8.Built in super large capacity rechargeable battery, one charge can work continuously for more than 10 hours.



Technical Parameters:



Purity

Test Range

0  100%

Accuracy

±0.5%

Test time

< 2 mins

Ambient Temperature

  -40℃~+60℃

Humidity

  0100RH

Power Supply

  AC 100220V

  Built in rechargeable battery

Battery character

 10 hours continuous working after 6 hours recharging.

Weight

5 kgs

Size

250×150×300mm3

Working Temperature

20℃~+60℃













Accessaries

Sr no.

     Description

Quantity

  1

SF6 Tester (Host)

1

unit

  2

Portable aluminum alloy suitcase

1

unit

  3

Test tube with valve for gas Inlet

1

unit

  4

Soft tube for gas output

1

unit

  5

Power supply cable

1

        unit

  7

Metal joint set (for buyers option)

1

Set

  8

Calibration report

1

unit

  9

Operating manual

1

unit
