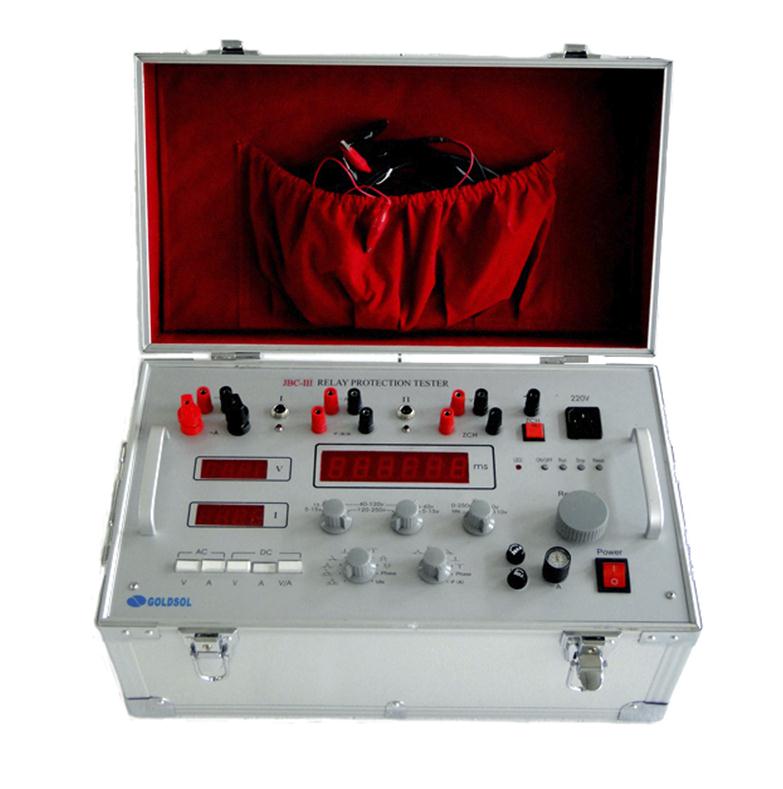

Relay Protection Tester JBC-III (single phase)

Relay Protection Tester JBC-III (single phase)

Purpose:

JBC-III Relay Protection tester is newly developed high intelligent, multi-function relay calibration equipment. The instrument uses single-chip microprocessor technology over the same period by the number of milliseconds the table automatically, logic control unit, multi-function digital display unit, high-precision data acquisition and processing unit, current, voltage output unit, overload and over-range protection unit and other components, since with print and display, automatic testing process, greatly improve the accuracy and efficiency.

The instrument also has a beautiful appearance, reliable performance, easy operation, function is complete, the advantages of protection devices is the ideal calibration instrument.



Technical Parameters

1. AC voltage output: 0 ~ 250V continuously adjustable,

  maximum output capacity:1000VA,

  over-range protection:260V, error:± 1%.

2. AC current output 0 ~ 20A, 0 ~ 130A continuously adjustable, error:± 1%.

  0 ~ 20A, open circuit voltage:24V.

  0 ~ 130A, open circuit voltage:14V.

3. DC voltage output:

  0 ~ 250V continuously adjustable, maximum current:4A,

  over-range protection:260V,

  overload protection trip current:4.1A ± 5%. Error:± 1%

4. DC current output:

  0 ~ 200mA, 0 ~ 5 A continuously adjustable, error:± 1%.

  0 ~ 200mA, open circuit voltage:48V, overload protection trip current: 230mA; 0 ~ 5A,

  open circuit voltage:24V, overload protection trip current 5.2A.

5. Fixed output DC voltage: 110V or 220V single output, current up to 2.5A, but when AC

   voltage and current, DC voltage output at the same time, the total capacity should not

   exceed 500VA.

6. Digital millisecond meter

   maximum range: 999 sec,Resolution: 0.1 ms, accuracy: 0.1% ± 1 digit

7. Meter accuracy: 4.5 A / D conversion, accuracy 0.1% reading ± 1 digit

8. Whole measurement accuracy: ≤ 1% 9. Size: 480x320x160mm

10. Weight: 22Kg
