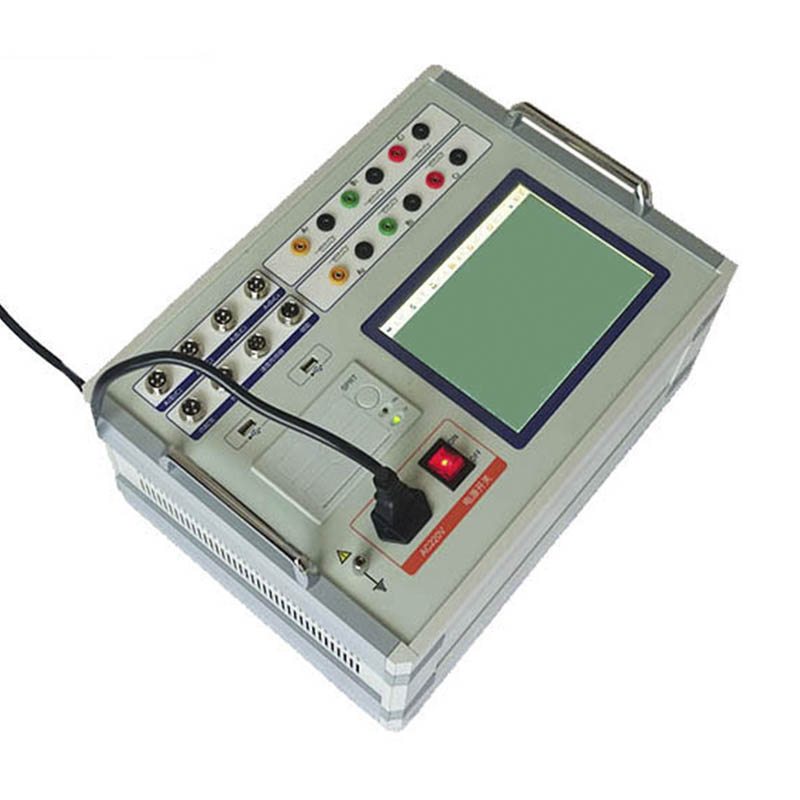

Circuit Breaker Analyzer DL-307

Product description:
INQUIRY

Introduction

The High-Voltage Circuit Breakers Analyzer is designed to meet the need of testing High-Voltage Circuit Breakers . It takes the ARM7 unit for core to sample, process and then output; the main characteristic is that it’s operated in alt. It has many advantages such as intelligence, multi-function, accurate data, strong anti-jamming, easy operation, small size, beautiful appearance, etc; It can test the Circuit Breakers as follows: indoors or outdoors Circuit Breakers with less oil or more oil, vacuum Circuit Breakers, SF6 Circuit Breakers and so on.

Features

1. Test standard: IEC62271
2. 12 channels metal contact breaks; 6 channels main contacts and auxliary contacts; 6

channels Closing Resistance simultaneously.
3. 8.4” imported high-brightness color large screen, clearly visible in the sun, embedded

operating system, windows operating interface, intuitive

interface, touch screen, easy for field operators to use.

4.High-speed thermal printer to facilitate on-site printing of test data.

5. Integrative operation power supply in the machine, without secondary power supply on site, is convenient and fast to use on site. DC20-265V adjustable power supply with 20A current can be provided. Arbitrarily adjust the operating voltage of the switching and closing coils, and can be used for low voltage operation test of circuit breakers.

6. Equipped with linear sensor, rotary sensor, sensor and bracket, special fixed

multi-functional connector, the installation is extremely convenient and simple.

8.4” color touch LCD.

7.Suitable for all types of SF6 switches, GIS combinations, vacuum switches and oil

switches produced at home and abroad.

8.Switch action once to get all data and graphics.

9.The host can store 6,000 groups of test data (extensible memory card), and the

real-time clock in the computer is easy to archive.

10.Equipped with U-disk interface, data can be directly saved to U-disk, uploaded to the

computer for analysis and preservation.

11.Included envelope, through the test data of several (2-10) switches, standard envelope can be generated, analyzed and compared, and switching vibration frequency can also be analyzed.

12.The internal anti-interference circuit can be used reliably in 800KV substation.

Main Technical parameters

Sr no	CHANNEL	CONFIGURATION	RANGE	RESOLUTION	ACCURACY
1	Contact Status	Simultaneously 12 channels metal contacts, 6 channels main contacts and auxiliary and 6 channels resistance, Switch off time and switch on time, in-phase no synchronization and phase to phase no synchronization; Bounce time (number of bounces)	0.01~20000mS (Can be setted)	Minimum 0.01mS	0.5% ± 2 digit
2	Auxiliary Contacts	Dry/Wet selectable, 6 channels	DC 30~265V	Minimum 0.01mS	0.5% ± 2 digit
3	Coil Current	Trip/Close coil current	20A DC	0.01A	±2%+0.2%FS
4	Closing Resistance	6 channels Switch off time and switch on time, in-phase no synchronization and phase to phase no synchronization;Bounce time (number of bounces); Turn-in time of closing resistance	50~7000Ω	0.1Ω	1% ± 2 digit
5	Breaker Control	Internal trigger: DC 30~265V, output current ≤ 20A@220V (short time)
6	Trigger Options	Open, Close, C-O, O-C, O-C-O
7	Speed Range	Just close (open) velocity; Average Speed for a Specified Period of Time (Travel or Angle)	1mm: 0.01~25mS 0.1mm:0.001~20mS 0.5º sensor:A cycle wave 0.5º	0.01mS	①0~2mS: ±0.1ms±1 digit ② >2mS: ±0.2ms±1 digit
8	Trip	50mm Linear sensor	50mm	0.1mm	±0.1ms±1 digit
		360º sensor	1000mm
		300mm Linear sensor (for option)	300mm
		500mm Linear sensor (for option)	500mm
		1000mm Linear sensor (for option)	1000mm
		600mm Linear sensor (for option)	600mm
9	Double-End Grounding Switch	3 channnels intrinsic open (close) time; Open (close) in-phase no synchronization; Open (close) bounce time and waveform
10	Test Results	Clear graphical result with test header and computation footer
11	Display	8.4” colour touch LCD
12	Communication	USB port, for data download
13	Printer	56 mm paper width, thermal printer
14	Environment	Temperature: operation: -10° C to 50°C; Storage: -30°C to 70°C
15	Power	220V±10% 50Hz±10%
16	Demension	380mm(L)×280mm(W)×270mm(H)
17	Weight	10kg
