Summary

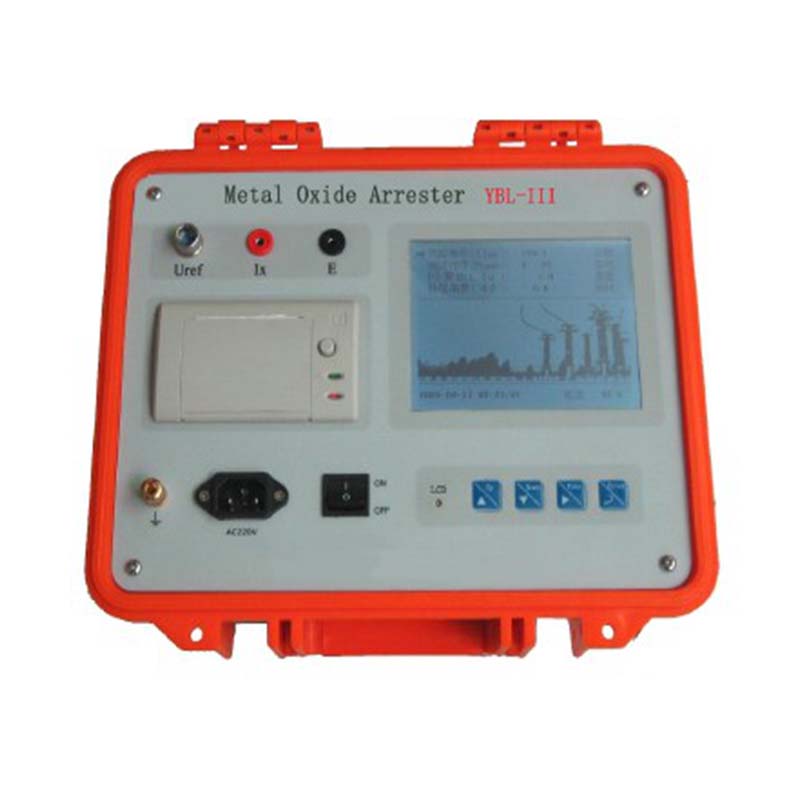

The Arrester is suitable for testing the internal defects of all kinds of voltage class of MOA (Metal Oxide Arrester).

Advantage

-Supply power: AC220V or Charging battery.

-LCD display test datas.

-Convenient to carry.

Technical Parameters：

1) Testing Range:

  -Testing Voltage:                  0～500 KV

  -Full Current(Peak):               0～10 mA

  -3 times harmonic wave current::   0～10 mA

  - Resistive Current(Peak):         0～10 mA

  - Capacitive Current(Peak):        0～10 mA

  - Arrester Consumption:           0～150W

2) Testing angle:                      0°-360°

3) Display Waveform of Voltage and full Current.

4) Testing Error

  -Testing Voltage：                   ±2%

  - Full Current：                      ±2%

  - Resistive Current:                   ±5%

  - Capacitive Current:                  ±5%

  - Arrester Consumption:                ±5%

5) Input:

Voltage(PT at low voltage side)：   AC 5～200V

Current:                        AC 0～20mA

5) Working Power：

AC  220V±10%, 50Hz

Built in Charging battery
