Purposes:

AC Testing of cables and electrical apparatus

is now easier than ever if using our VLF High Voltage Tester !

VLF testers are suitable for testing cables, transformers, switchgear,rotating machinery, and other electrical apparatus.

VLF Advantage:

• AC/DC dual purposes.
• Touch colour wide LCD
• Easiest to use Fully automatic microcontroller
• Built-in printer
• True sine wave output
• Real-time display of actual output waveform
• Ergonomic, menu guided, large backlit LCD
• Storage of test results for later retrieval and print.
• Over voltage and current protected
• Auto variable frequency 0.1Hz, 0.05Hz, 0.02 Hz, 0.01Hz
• Data of current, voltage and waveform directly sampled at HV side.
• AC testing does not degrade good cable insulation
• Harmful space charges are not injected into the cable insulation
• No traveling waves are generated during testing
• Rugged and reliable design less prone to failure from transients

Technical parameters

 1.Power: 220V ± 10% AC, 50/60 Hz, single phase;  or 110V ± 10% AC, 50/60 Hz, single phase.

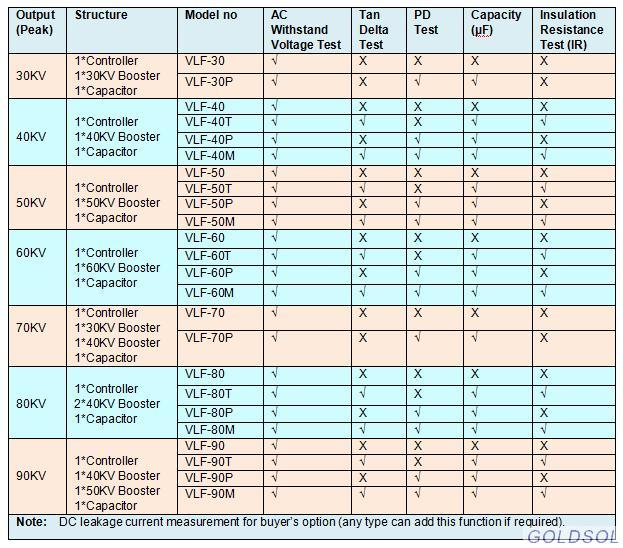

 2. AC Output-Voltage (Peak):30KV, 40KV, 50KV, 60KV, 70KV, 80KV, 90KV, 100KV

 3.Output frequency:  0.1Hz,0.05Hz,0.02Hz, 0.01 Hz (4 scales)

 4. Stability of frequency: Fluctuation < 0.5%

 5. Measurement accuracy: ±3%.

 6. Positive and negative voltage peak error: ≤3%.

 7. Voltage waveform distortion: ≤5%

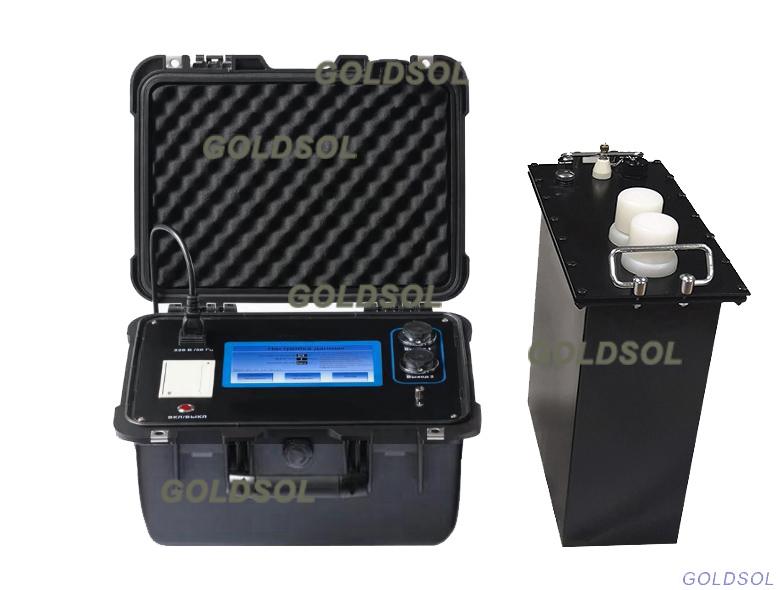

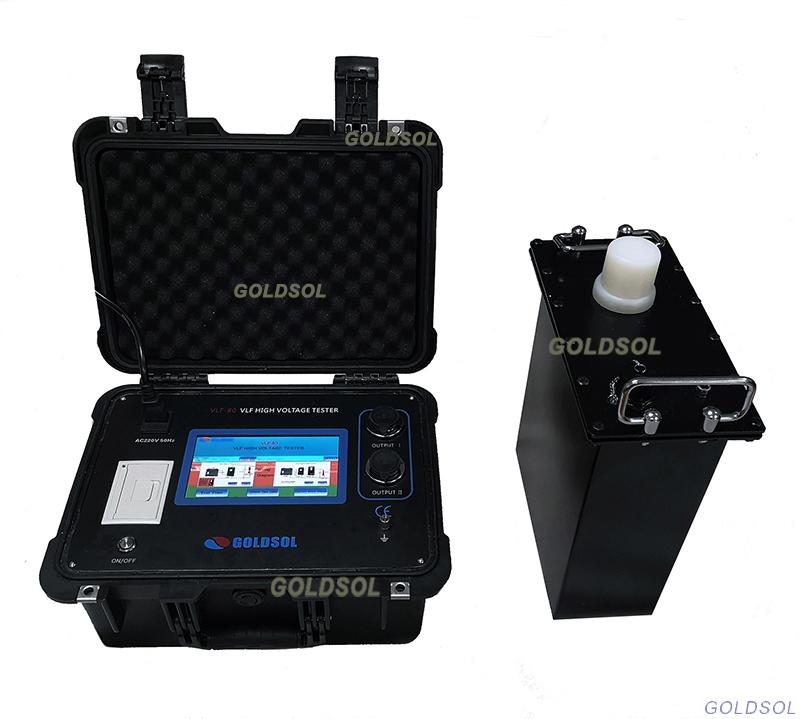

 8. Construction: In two units: Control unit and Booster.

 9. Ambient conditions of use: temperature Indoor and outdoor : -10ºC ～ + 50ºC.

10. Humidity:≤85%

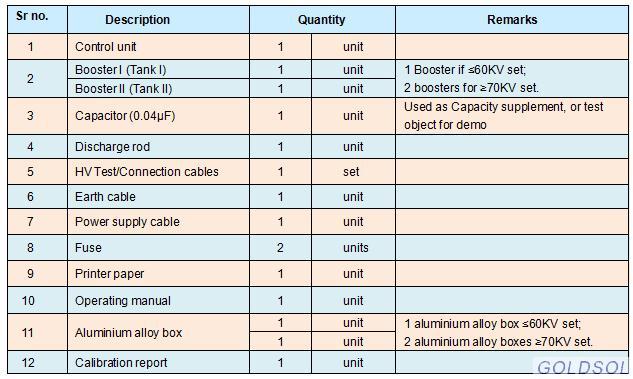

Accessaires
