Purpose:

Suitable for high-capacity, high-voltage capacitive voltage withstand test.

For 10kV, 35kV, 110kV, 220kV cable AC voltage withstand test;
For 110 kV, 220kV GIS system AC voltage withstand test;
For 110 kV, 220kV high-voltage switches, PT, CT AC voltage withstand test;
For large transformers and generators AC voltage withstand test.

Features:

1.Output the standard sine wave, distortion rate<0.5%;
2.Tuning test voltage, frequency range, the protection current, test time;
3.Software automatically fine frequency voltage regulator that it can automatically save test data;

4.Frequency Range: 30 ~ 300Hz;
5.Adjustable resolution: 0.01 ~ 0.001Hz;

6.Blue large-screen LCD displays test data;
7.Printed output voltage, frequency, and test electrical items such as test data volume; 8.USB communication interface, easy to managing test data;

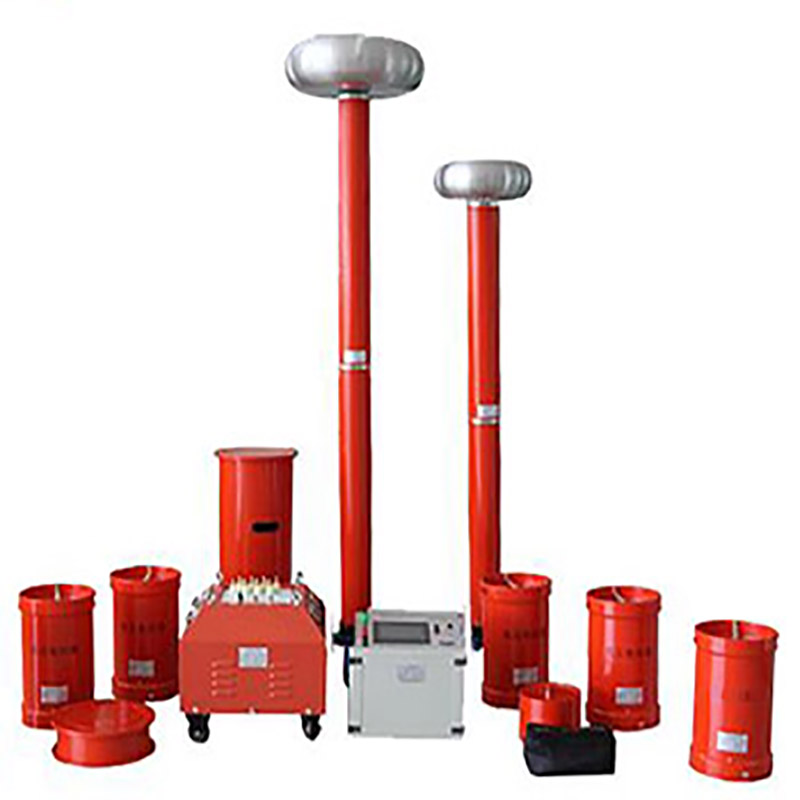

9.Ultra-small, ultra-light, building block-type dry-type reactor and dry-type transformers;

9.Configuration flexibility:

Reactor of multi-desktop，DUT （device under test）can be used in series/paralleling；

but it can be brought to the scene to determine the number of reactors according to

DUT。With a compensation capacitor and light loads (such as short-cable) in parallel

will enable the resonant frequency less than 65Hz, closer to the frequency 50Hz.

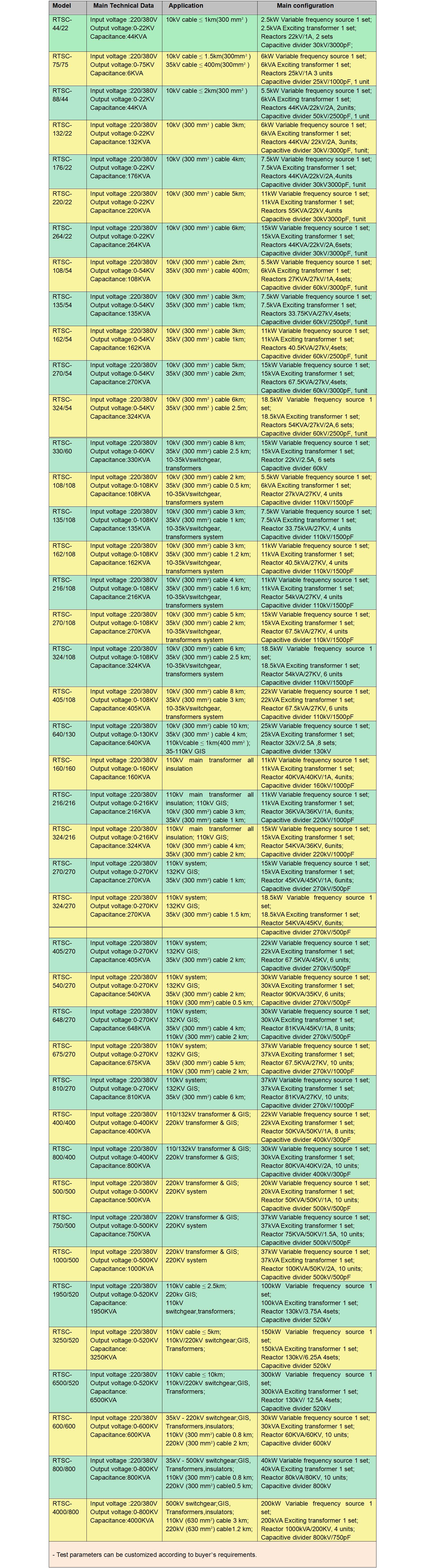

Technical Specifications:
