Primary Current injection Tester

Product description:
INQUIRY

Purposes:

Primary Current Injection (Strong current generator) is the special electrical test equipment for the electric power sector and industrial and mining enterprises, it is suitable for testing electrical equipment of a variety of switches, current transformers.

The equipment has single phase or three phase, Pointer type, digital display type, manual or automatic type.Short time/long time working, or temperature rising equipments can also be customized.

Features:

The range of products have split and one piece structure according to their different size and weight, they have many advantages: output current poleless adjustment, the current rise in balance, wide load range and reliable working, easy to operate, security and so on. The products can be used for electric test equipment to boost current/rise tempetature for industrial and mining enterprises.

Technical Parameters and Specifications

Model	Capacity （KVA）	Primary		Secondary		No.of Phase		Remark
Model	Capacity （KVA）	V₁	A₁	V₂	A₂	No.of Phase		Remark

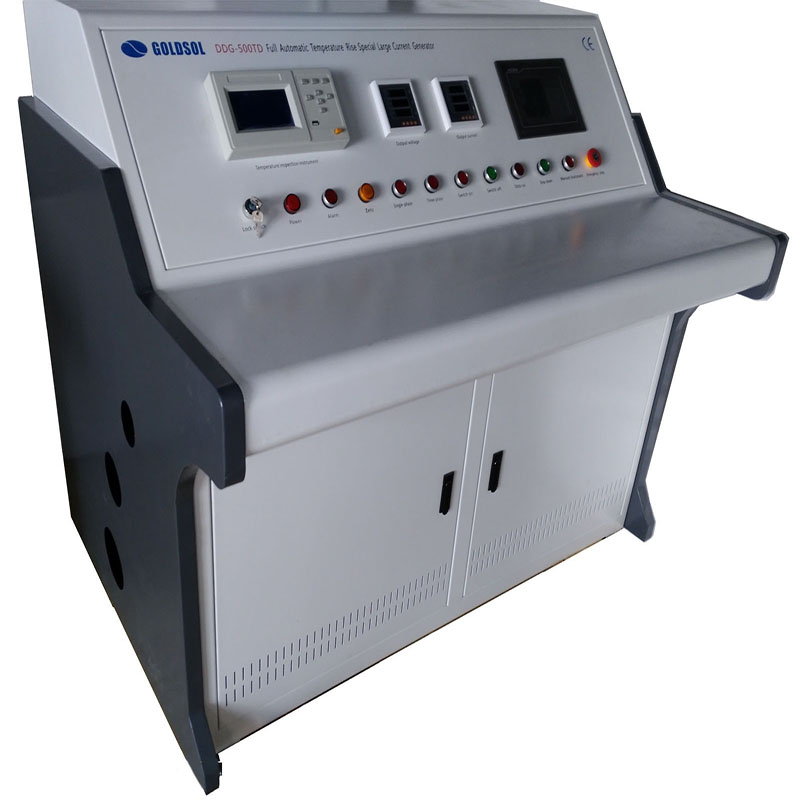

DDG—500A	3	200	15	6	500	1		1 unit
DDG—1000A	6	200	30	6	1000	1		1 unit
DDG—1500A	9	200	45	6	1500	1		1 unit

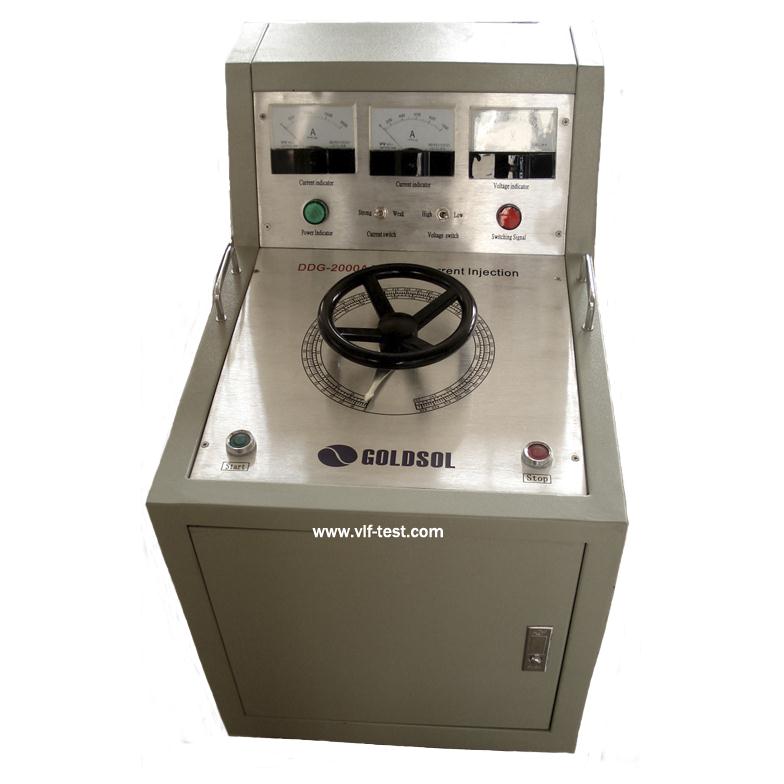

DDG—2000A	12	200	60	6	2000	1	2	1unit/2unit
DDG—2500A	15	380	39.5	6	2500	1	2	1unit/2unit
DDG—3000A	18	380	47.4	6	3000		2	1unit/2unit
DDG—4000A	24	380	63	6	4000		2	2 unit
DDG—5000A	30	380	80	6	5000		2	2 unit
DDG—6000A	36	380	94.7	6	6000		2	2 unit
DDG—8000A	48	380	126.3	6	8000		2	2 unit

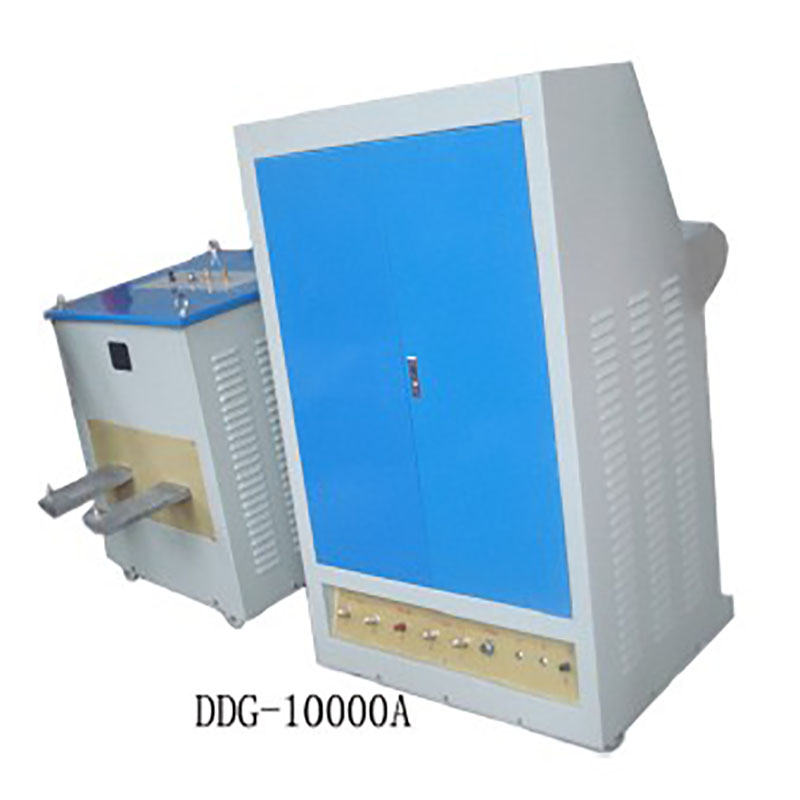

DDG—10000A	60	380	157.9	6	10000		2	2 unit
DDG—15000A	90	380	236.8	6	15000		2	2 unit
DDG—20000A	120	380	315.8	6	20000		2	2 unit
