Application
The Impulse voltage generator test system is mainly suitable for testing 36KV or below instrument transformer lightning impulse voltage set.
Woking condition:
1.Altitude≤1000m
2.Environment temperature: -5℃~40℃
3.Relative humidity≤90%
4.Installation place: indoor type
5.Ground resistance<0.3Ω
Test equipment included in the test system

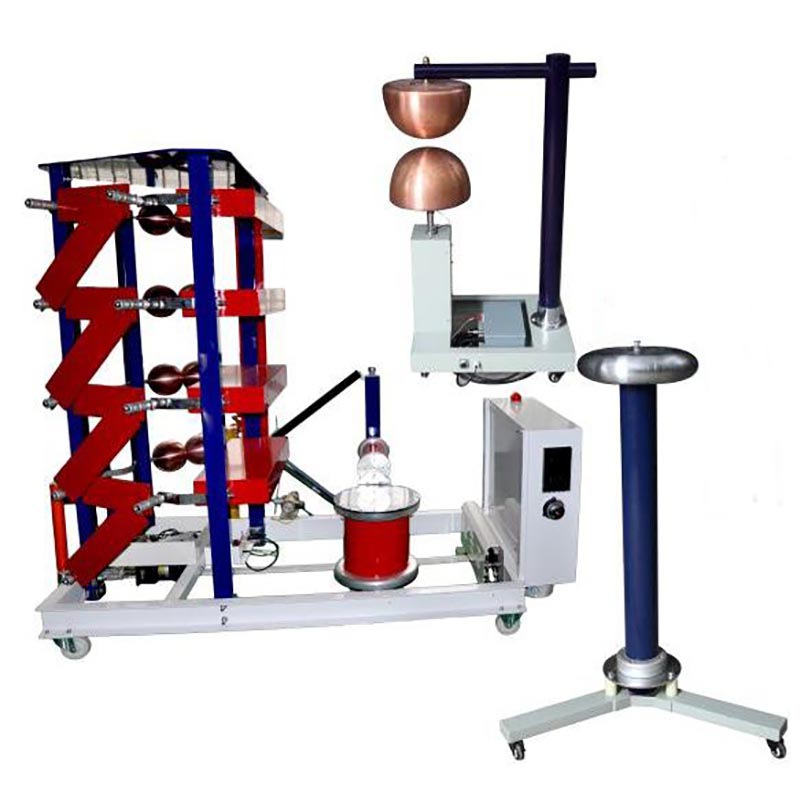

400KV/30KJ Full wave impulse device, 400kV Chopping device, 400KV Capacitive voltage divider, LGR-100/50 Rectifier Transformer, Measurement&control system(including Lighting impulse voltage Test Bench, TDS3012C Oscilloscope, IPM-24 Peak volmeter, 2 pcs Attenuator , printer, control&measurement software, etc.)
Sr no |
Description |
Qty |
Remark |
|
1 |
400KV Lightning Impulse Generator’s body |
1 |
Unit |
|
2 |
100KV/50mA Rectifier Charging Power Supply Device (Rectifier Transformer) |
1 |
Unit |
|
3 |
400kV Capacitive Divider |
1 |
Unit |
|
4 |
400KV Choping Device |
1 |
Unit |
|
5 |
Control system |
Control bench |
1 |
Unit |
Oscilloscope |
1 |
Unit |
||
Peak Volmeter |
1 |
Unit |
||
Software for control,measuring and print |
1 |
Unit |
||
6 |
Attenuator |
2 |
Unit |
|
7 |
Wave head Resistor |
1 |
Set |
|
8 |
Wave tail Resistor |
1 |
Set |
|
9 |
Calibration report |
1 |
Unit |
|
10 |
Opearting manual |
1 |
Unit |
1. Impulse voltage generator (400kV/30kJ)
u Main technical parameters
u Nominal lightning impulse voltage: 400kV
u Nominal capacity (energy): 30kJ
u Capacitance per stage: 1.5μF, 100kV
u Voltage per stage: ± 100kV
u Number of stages/ Capacity per stage: 4 /7. 5kJ
u Output waveform:
u 1.2±30%/50±20%μ S standard lightning impulse voltage full wave, oscillation amplitude at peak value≤5%
u Min. output voltage≤10 %Un
u Generator efficiency≥ 90%;
u Triggering range: ≥ 20%
u Working Duration:
u continuous operation >70%Un, charge&discharge every 90s
u continuous operation <70%Un, charge&discharge every 60s
u The instability of output peak voltage≤1.0 %, the lowest output ≤10% of the nominal voltage of the device.
u Malfunction rate while synchronous discharge<2 %
u ignition range: 10%~100%
2. Rectifier charging power supply
u Rated voltage: Un = 100kV DC (Positive or negative polarity)
u Rated current: In = 100mA (Under rated voltage)
u Voltage control: Controllable constant current charge, regulate range 0~100% Un
u Polarity conversion: Auto convert path of high voltage silicon stack
u Input voltage: 220V, single-phase
u Frequency: 50/60Hz
u Power supply capacity: 5kVA
u power supply resistance: 3 pcs
3. Low damping capacitive voltage divider
u Model: 400kV/400pF
u Rated voltage: 400kV
u Rated capacitance: 400pF
u Stage of capacitor: 1 stage
u Capacitance per stage: 400pF
u Square wave response: Partial response time is less than 100ns, overshoot is less than 20%
u Voltage division uncertainty: Less than 1%
4. Chopping device
u Rated Voltage: 400kV
u Sphere gap type: Diameter 300mm hemisphere gap
u Time delay mode: 2-6us time delay adjustable circuit provide chopping trigger pulse.
u Chopping wave dispersibility: Chopping wave time standard error is less than 0.1us.
u Sphere gap Qty: 2 pcs
u chooped wave resistance 1 pc
5. Signal analyze auto-testing system
u Waveform test: TDS3012C digital oscilloscope
Max. sample rate 1.0GS/s, 100MHz bandwidth, resolution 8bit
Record length 2.5K byte, 2 channels
u Waveform analyzation:
Industrial control computer and LCD display
Impulse test software
Display and calculate impulse waveform parameters
Waveform comparison function
Waveform amplification, shrink and translation
Store and invoking of waveform
Auto-generated test report in picture format
6. Accessories
u 2pcs of high performance 100 times specialized attenuator
u Isolation filter shielding design
u 3 groups wave head resistance (4pcs/group)
u 3 groups wave tail resistance (4pcs/group)
