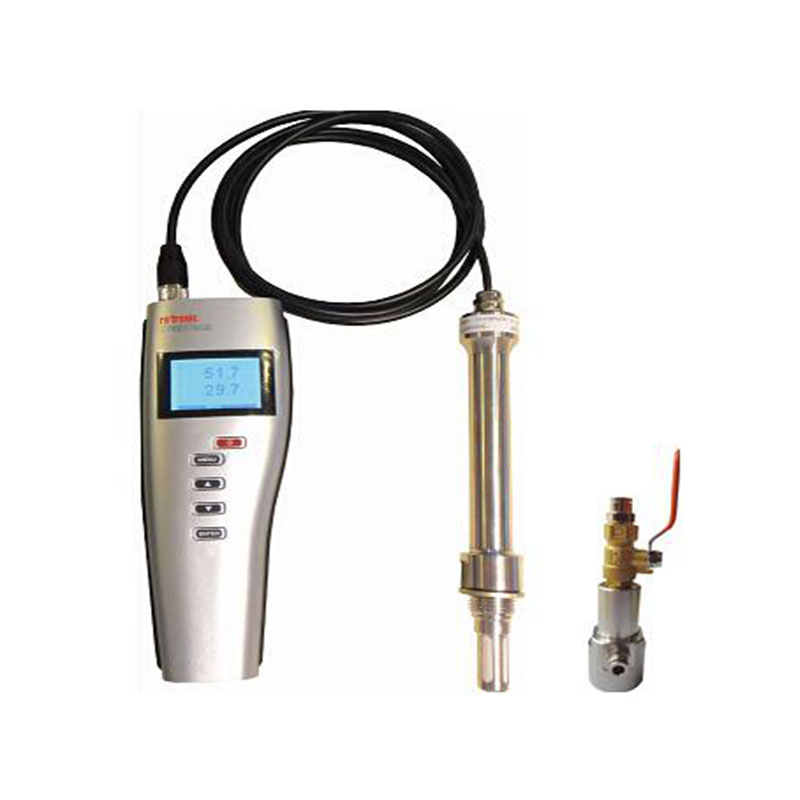

HP22-DP Portable Temperature & Humidity Dew Point Meter

HP22-DP Portable Temperature & Humidity Dew Point Meter

Summary

HP22-DP handheld Meter using AirChip3000 technology, it is perfect instrument of temperature and humidity, dew point. The utility model has the advantages of high precision, and many practical functions, it is very easy to use.

 HP22-DP has friendly interface of HW4 software and buttons. Supports all HC2 series probes, wide range, easy to configure, easy to use, easy to maintain and easy to calibrate.

HP22-DP can connect with all ROTRONIC HC2 probe. HP22-DP can measure relative humidity, temperature and dew point,it can show all the humidity value, with the trend indicator and the function of the measurement data.



Application

It is widely used in power plants, metallurgy, scientific research, health quarantine, grain storage, medical equipment, environmental testing, calibration, paper and textile production process and so on...it is especially suitable for testing acid and alkali gases, it can measure hydrogen, SF6, carbon dioxide, methane, carbon monoxide and oxygen.

 In the process of production and application of dry air, humidity and condensation are the most important parameters



Advantage

1.Compatible with all ROTRONIC HC2 probe

2.Multiple probe interchangeability are available, suitable for different

  occasions of humidity measurement

3. Handheld range: -10…60℃/0…100%RH

4. High accuracy:±0.8%RH±0.1℃±2℃DP(at-40℃Td

5. Display temperature,humidity, dew point and all parameters about humidity.

6. Three point calibration at 23 degrees (10, 35, 80%RH)

7. Button key calibration probe 1 or more points of temperature and humidity

  calibration

8. Communication interface (UART)

9. Battery power supply 9V, no backlight power consumption 4mA

10.Conforms to FDA 21 CFR Part 11 and GAMP

Technical data



Working range

Humidity: 0… 100% rh

Temperature: -10…60℃

Probe

HC2-DP Dew Point probe

Measuring rangeInterchangeable probe

Humidity0… 100%rh

Temperature -40… 85 ° C -100… 200 ° C,(optional

Dew ponit range-60°C---+60°CExtending -80°C---+20°C

Accucary

± 0.8%rh / ± 0.1 ℃±2℃DP(at-40℃Td)(Temperature 23 °CHumidity10, 35, 80 %rh三点

Stablity

<1 %rh /year

Password Protection

Support

Response time

< 15 secs

Initialization time

< 2 secs

Power

9V, consume 4mAsupport chargable

Test interval

1 sec

Calibration

Press button

Wind speed

20 m/s

Humidity calculation value

All parameters

Display

Graphics display, backlight, display custom content

Trend indicator

Support

Save data

2000 pieces

Compatable software

ROTRONIC HW4

Statistical function

Mini/Max/Average

Probe adjustment(software)

One or multi-points

Humidity parameter calculation

Dew point/frost point

Users information

HW4 managment

Interface

Mini USB (UART)

Instruemtn protection

Yes

Sensor diagnosis

Setting

Data storage

2000 groups

Max cable length

10m

Probe material

Stainless steel

Probe filter

Polyethylene filter

Shell material

ABS

Handheld meter/probe size

268 x 72 x 30 mm / 18x 200 mm

Weight

210 g

FDA/GAMP

FDA CFR21 part 11 & GAMP

Item no.

HP22-DP
