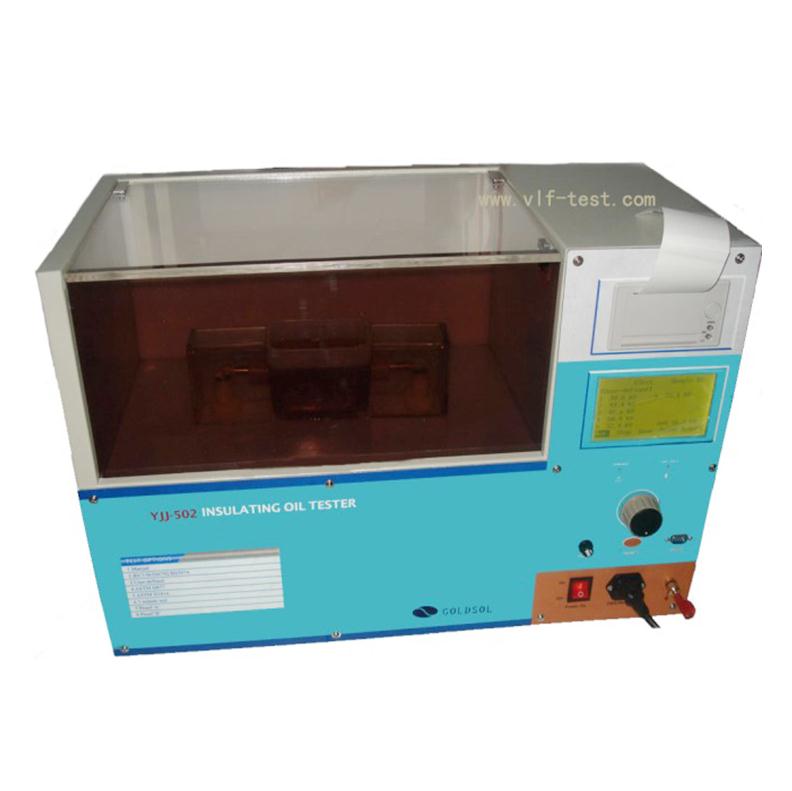

YJJ-502 Insulation Oil Tester

YJJ-502 Insulation Oil Tester

1. General introduction

YJJ-502 is developed according to the national standard GB-86 Insulating Oil Dielectric Strength Testing Method .LCD screen can display test procedure and test result. All the human interaction operations complete by the rotating mouse .It is very easy for customers to measure the breakdown voltage of all kinds of oil by YJJ-502. You can print the test result by the micro printer internal the tester. Of course, you can upload the test data to PC from RS232 for data analyzing. The special circuit design makes the tester has a good performance at stability and anti-noise.



2. Functions

1) Breakdown test of user-defined

2) Proof test

3) IEC156/IS6792/BS5874/

4) ASTM D1816 standard test

5) ASTM D877 standard test

6) 5 minutes standard test

7) Manual test

8) Calibration interface for customers

9) Unloading data to PC and making word report automatically.

10) Result print



3. Technique index

1)  AC220V input

2) Output voltageAC 0V~100KV

3) Rate of voltage rise: 0.5kv/s±10%, 2kv/s±10%, 3kv/s±10%,5kv/s±10%

4) Max test times: 9

5) Stir time: 0~999s

6) Wait time: 0~999s

7) Test error: 3% max in the range of 10kv~100kv

8) Weight 41kg

9) Size:630 mm*400mm*300mm



4. Accessories

Name

Quantity

Insulating oil tester

1unit

Power line

1unit

Grounding line

1unit

Test vessel

1unit

Electrodes: Mushroom, Flat or Spherical type

1set

Feeler gauge 1mm,2mm,2.5mm,4mm

1set

Insulation cover

1pair

Stirrer

1unit

High voltage column

1pair

USB-RS232 connection line

1unit

Thermal print paper

1unit

Fuse

1set

Instruction manual

1unit

Disk

1unit

Test report

1unit
