Grounding Tools

Product description:
INQUIRY

Brief instruction

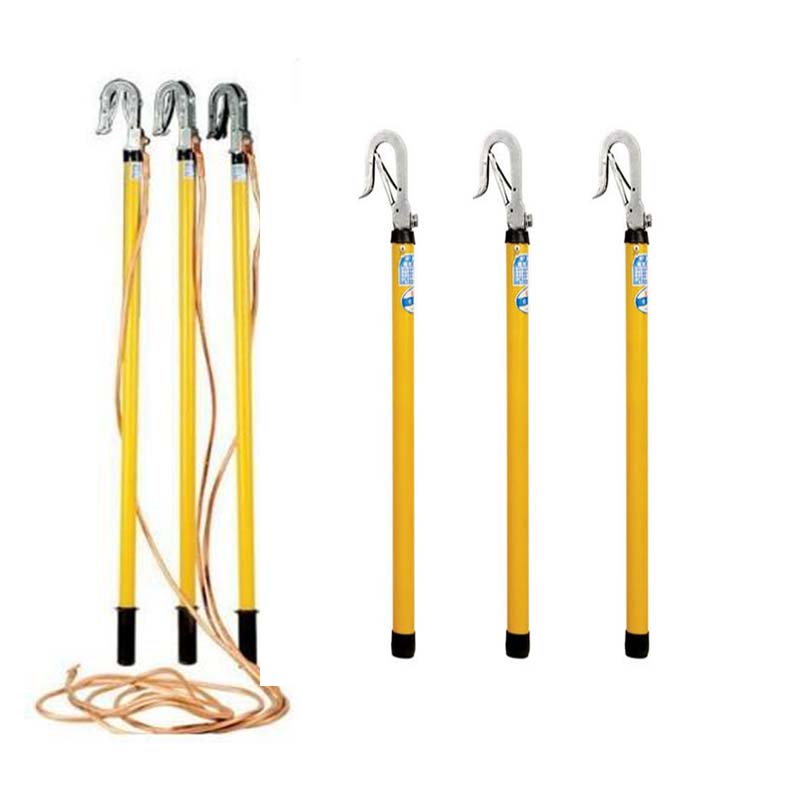

The material of operation rod is made of high quality glass fiber reinforced epoxy resin bar, the operating head has clamp with flat screw hook and double reed hook style, The operating rod has 3 pieces or 4 pieces if indoor; 3 pieces of rods are usually used at outdoor.

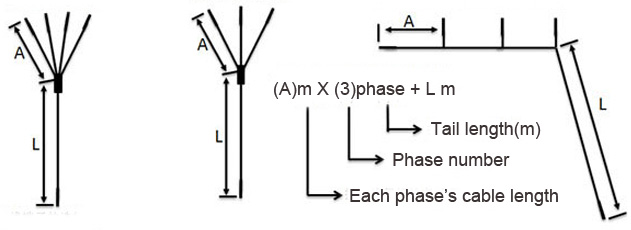

Normal wiring required (Special wiring can be customized):

Technical data

Voltage Class	Insulation Rod Length	Copper wire type	Resistance	Earth wire	Ground pin
0.5KV	0.5m3*	25mm2	≤0.79mΩ	1.0M*3+6M	16x800mm/1
6KV	0.5m3*	25mm2	≤0.79mΩ	1.5M*3+6M	16x800mm/1
11KV	1.0m3*	25mm2	≤0.79mΩ	1.5M*3+10M	16x800mm/1
35KV	1.5m3*	25mm2	≤0.79mΩ	2.0M*3+15M	16x800mm/1
66KV	2.0m3*	25mm2	≤0.79mΩ	2.5M*3+20M	16x800mm/1
110KV	2.0m3*	25mm2	≤0.79mΩ	4.0M*3+20M	16x800mm/1
110KV	2.0m3*	25mm2	≤0.79mΩ	9.0M*3	Grounding clamp/1
220KV	3.0m3*	25mm2	≤0.79mΩ	5.0M*3+25M	16x800mm/1
200KV	3.0m3*	25mm2	≤0.79mΩ	9.0M*3	Grounding clamp/3
500KV	6.0m3*	35mm2	≤0.56mΩ	13.0M*3	Grounding clamp/3
*** Technical parameters can be customized as per requirements.
