1.Main Purpose

By heating and increasing the temperature, volatile components are volatilized from the sample matrix, reaching equilibrium in the gas-liquid (or gas-solid) two-phase system. The top gas is directly extracted for chromatographic analysis to determine the composition and content of volatile components in the sample. It is commonly used for the pretreatment of volatile organic compounds in water, soil, or solid/liquid samples.

2.Compliance Standards

Complies with HJ 620-2011, HJ 642-2013, HJ 643-2013, HJ 679-2013, HJ 714-2014, HJ 736-2015, HJ 741-2015, HJ 742-2015, HJ 760-2015, HJ 810-2016, HJ 874-2017, HJ 959-2018, HJ 975-2018, HJ 1067-2019, HJ 1072-2019, GB/T 42430-2023, SN/T 4148-2015, GB/T 16886.7-2015, GB/T 5750.8-2023, and other standard requirements.

3.Operating Conditions

3.1 Power Supply: 220V-240V, 50Hz-60Hz;

3.2 Temperature: Operating environment 10～35 ℃;

3.3 Humidity: 10%～90%.

4. Performance Indicators

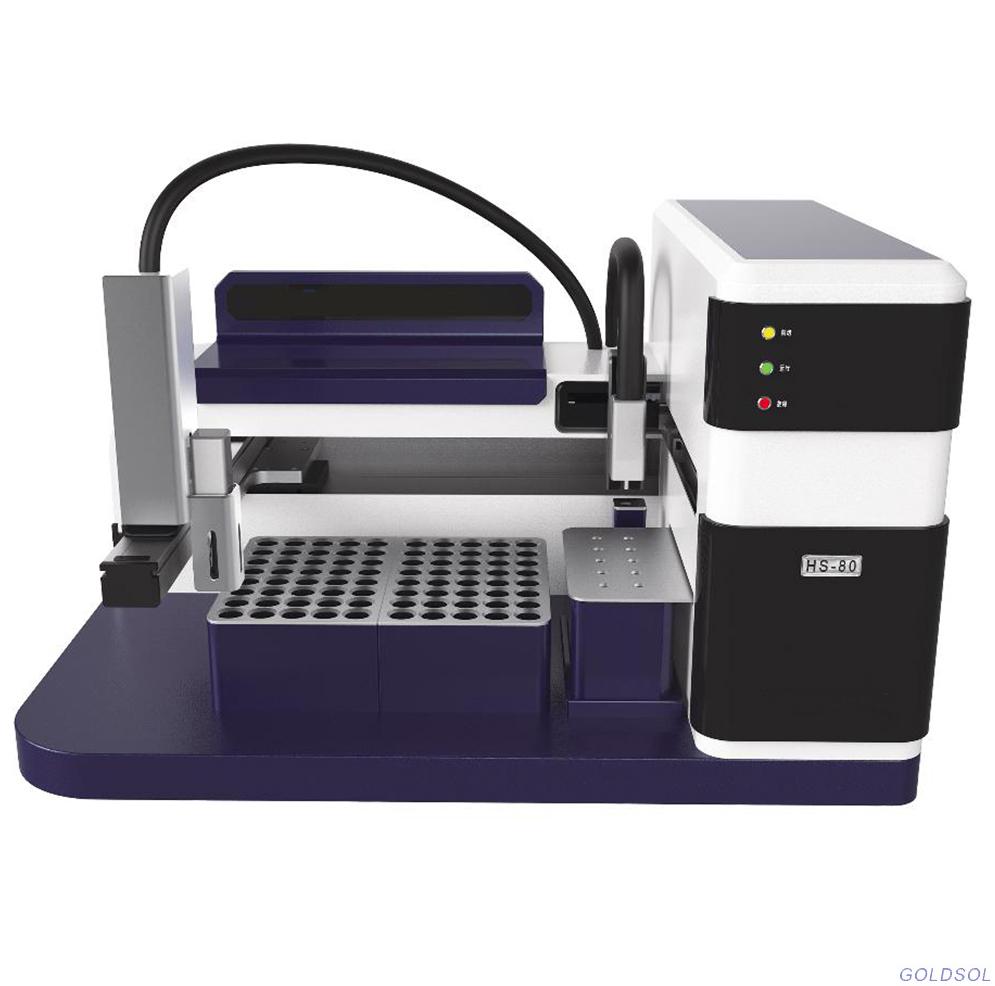

1. Sample Capacity: 80 positions;

2. Drawer-type sample tray for easy access to sample vials;

3. Features system self-check upon startup, fault alarm and prompt functions, temperature overload protection, and      leakage protection to ensure equipment and personnel safety;

4. Three-axis motion platform for automatic operation from vial retrieval, loading, sampling, vial return, needle insertion, injection, and needle withdrawal, ensuring fast and accurate operation;

5. 10-position heating oven, allowing multiple samples to be heated simultaneously, effectively reducing waiting time and maximizing analysis efficiency;

6. Heating positions have oscillation function to reduce the time required for samples to reach equilibrium, further enhancing efficiency;

7. Free addition of queue samples and adjustable queue running order, enabling automatic operation of multiple methods and queues without intermediate operations;

8. Sample transfer lines and injection needles are made of inert materials to reduce sample residue and loss;

9. Needle heating function to avoid sample condensation and residue, ensuring experimental accuracy;

10. PC software control with dynamic instrument operation diagrams for comprehensive and intuitive monitoring of instrument operation and the current status of each sample;

11. Quantitative loop injection, standard 1ml quantitative loop, optional specifications, and optional differential pressure injection;

12. Equipped with dedicated interfaces to synchronize with various GC, GCMS, and chromatographic data processing workstations;

13. Injection system with automatic backflushing function to effectively reduce cross-contamination between different samples;

14. TCP/IP communication mode for connection with computers, avoiding instability caused by USB-to-serial communication and preventing test sequence interruptions;

15. Optional electronic pressure control (EPC) system to reduce manual errors and improve analysis accuracy and reproducibility;

16. Audit trail function with free 3Q validation service provided by the manufacturer;

17. Sample zone temperature control range: room temperature---240℃, adjustable in 1℃ increments, heating power approximately 200W;

18. Valve injection system temperature control range: room temperature---240℃, adjustable in 1℃ increments, heating power approximately 100W;

19. Sample transfer line temperature control range: room temperature---240℃, adjustable in 1℃ increments, heating power approximately 200W;

20. Temperature control accuracy: ±0.1℃;

21. Temperature control gradient: ±1℃;

22. Headspace vial positions: 80;

23. Headspace vial specification: 20ml;

24. Injection pressure range: 0～0.4Mpa (continuously adjustable);

25. Backflushing cleaning flow rate: 0～400ml/min (continuously adjustable).

5.Configuration

5.1 Fully automatic headspace sampler host: 1 unit;

5.2 Headspace vials (including caps and septa): 100 pieces;

6. Technical Documents

6.1 Packing list of the product and its accessories;

6.2 Installation and operation manual;

6.3 Product factory quality inspection certificate;

7.After-Sales Service

7.1 Equipment installation, debugging, and acceptance: Upon arrival at the user's location, installation and debugging will be conducted within one week after receiving user notification until acceptance; acceptance is based on the "Installation and Debugging Acceptance Form";

7.2 Warranty period: 1 year of free maintenance, starting from the date of acceptance signing, with repair services provided;

7.3 Free pre-sales, in-sales, and after-sales training services, including technical principles, installation and debugging, instrument operation, and maintenance, with at least 2 free training slots provided by the manufacturer;

7.4 Maintenance response: 24-hour hotline service, available year-round without holidays; professional engineers will respond within 2 hours and arrive on-site within 72 hours to ensure timely service, with the above information verifiable on-site.
